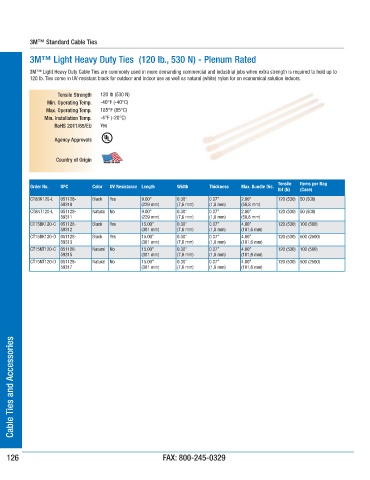

Page 125 - 3M ELECTRICAL PRODUCTS CATALOG - 596-PAGES

IronwoodPremium_474113_Catalog-On-Demand.QXD 6/16/2015 11:12 PM Page 126

3M™ Standard Cable Ties

3M™ Light Heavy Duty Ties (120 lb., 530 N) - Plenum Rated

3M™ Light Heavy Duty Cable Ties are commonly used in more demanding commercial and industrial jobs when extra strength is required to hold up to
120 lb. Ties come in UV-resistant black for outdoor and indoor use as well as natural (white) nylon for an economical solution indoors.

Tensile Strength 120 lb (530 N)
Min. Operating Temp. -40°F (-40°C)
Max. Operating Temp. 185°F (85°C)
Min. Installation Temp. -4°F (-20°C)
RoHS 2011/65/EU Yes

Agency Approvals

Country of Origin

Tensile Items per Bag
Order No. UPC Color UV Resistance Length Width Thickness Max. Bundle Dia.
lbf (N) (Case)
CT8BK120-L 051128- Black Yes 9.00” 0.30” 0.07” 2.00” 120 (530) 50 (500)
59310 (229 mm) (7,6 mm) (1,8 mm) (50,8 mm)
CT8NT120-L 051128- Natural No 9.00” 0.30” 0.07” 2.00” 120 (530) 50 (500)
59311 (229 mm) (7,6 mm) (1,8 mm) (50,8 mm)
CT15BK120-C 051128- Black Yes 15.00” 0.30” 0.07” 4.00” 120 (530) 100 (500)
59312 (381 mm) (7,6 mm) (1,8 mm) (101,6 mm)
CT15BK120-D 051128- Black Yes 15.00” 0.30” 0.07” 4.00” 120 (530) 500 (2500)
59313 (381 mm) (7,6 mm) (1,8 mm) (101,6 mm)
CT15NT120-C 051128- Natural No 15.00” 0.30” 0.07” 4.00” 120 (530) 100 (500)
59315 (381 mm) (7,6 mm) (1,8 mm) (101,6 mm)
CT15NT120-D 051128- Natural No 15.00” 0.30” 0.07” 4.00” 120 (530) 500 (2500)
59317 (381 mm) (7,6 mm) (1,8 mm) (101,6 mm)

Cable Ties and Accessories
