Portable Labelers

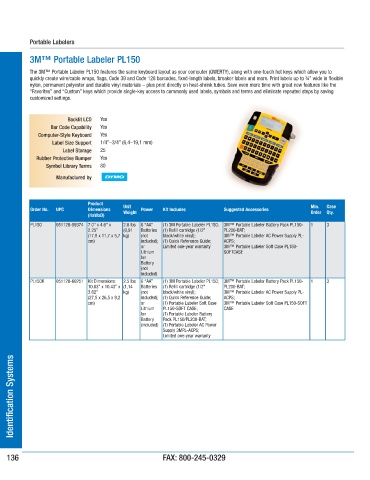

3M™ Portable Labeler PL150

The 3M™ Portable Labeler PL150 features the same keyboard layout as your computer (QWERTY), along with one-touch hot keys which allow you to
quickly create wire/cable wraps, flags, Code 39 and Code 128 barcodes, fixed-length labels, breaker labels and more. Print labels up to ¾” wide in flexible
nylon, permanent polyester and durable vinyl materials – plus print directly on heat-shrink tubes. Save even more time with great new features like the
“Favorites” and “Custom” keys which provide single-key access to commonly used labels, symbols and terms and eliminate repeated steps by saving
customized settings.

Backlit LCD Yes
Bar Code Capability Yes
Computer-Style Keyboard Yes
Label Size Support 1/4”–3/4” (6,4–19,1 mm)
Label Storage 25
Rubber Protective Bumper Yes
Symbol Library Terms 80
Manufactured by

Product
Order No. UPC Dimensions Unit Power Kit Includes Suggested Accessories Min. Case
(HxWxD) Weight Order Qty.
PL150 051128-59374 7.0” x 4.6” x 2.0 lbs 6 “AA” (1) 3M Portable Labeler PL150; 3M™ Portable Labeler Battery Pack PL150- 1 3
2.25” (0,91 Batteries (1) Refill cartridge (1/2” PL200-BAT;
(17,8 x 11,7 x 5,7 kg) (not black/white vinyl); 3M™ Portable Labeler AC Power Supply PL-
cm) included); (1) Quick Reference Guide; ACPS;
or Limited one-year warranty 3M™ Portable Labeler Soft Case PL150-
Lithium SOFTCASE
Ion
Battery
(not
included)
PL150K 051128-60251 Kit Dimensions: 2.5 lbs 6 “AA” (1) 3M Portable Labeler PL150; 3M™ Portable Labeler Battery Pack PL150- 1 3
10.83” x 10.43” x (1,14 Batteries (1) Refill cartridge (1/2” PL200-BAT;
3.62” kg) (not black/white vinyl); 3M™ Portable Labeler AC Power Supply PL-
(27,5 x 26,5 x 9,2 included); (1) Quick Reference Guide; ACPS;
cm) or (1) Portable Labeler Soft Case 3M™ Portable Labeler Soft Case PL150-SOFT
Lithium PL150-SOFT CASE; CASE
Ion (1) Portable Labeler Battery
Battery Pack PL150/PL200-BAT;
(included) (1) Portable Labeler AC Power
Supply 3MPL-ACPS;
Limited one-year warranty

Identification Systems
