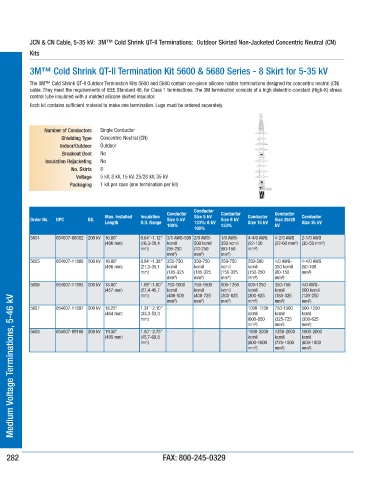

JCN & CN Cable, 5-35 kV: 3M™ Cold Shrink QT-II Terminations: Outdoor Skirted Non-Jacketed Concentric Neutral (CN)
Kits

3M™ Cold Shrink QT-II Termination Kit 5600 & 5680 Series - 8 Skirt for 5-35 kV

The 3M™ Cold Shrink QT-II Outdoor Termination Kits 5600 and 5680 contain one-piece silicone rubber terminations designed for concentric neutral (CN)
cable. They meet the requirements of IEEE Standard 48, for Class 1 terminations. The 3M termination consists of a high dielectric-constant (High-K) stress
control tube insulated with a molded silicone skirted insulator.
Each kit contains sufficient material to make one termination. Lugs must be ordered separately.

Number of Conductors Single Conductor
Shielding Type Concentric Neutral (CN)
Indoor/Outdoor Outdoor
Breakout Boot No
Insulation Rejacketing No
No. Skirts 8
Voltage 5 kV, 8 kV, 15 kV, 25/28 kV, 35 kV
Packaging 1 kit per case (one termination per kit)

Conductor
Conductor Conductor Conductor
Max. Installed Insulation Size 5 kV Conductor Conductor
Order No. UPC BIL Size 5 kV Size 8 kV Size 25/28
Length O.D. Range 133%: 8 kV Size 15 kV Size 35 kV
100% 133% kV
100%
5604 054007-08002 200 kV 16.00” 0.64”-1.12” 3/0 AWG-500 2/0 AWG- 1/0 AWG- 4-4/0 AWG 4-2/0 AWG 2-1/0 AWG
(406 mm) (16,3-28,4 kcmil 500 kcmil 350 kcmil (22-100 (22-60 mm²) (30-50 mm²)
mm) (95-250 (70-250 (60-150 mm²)
mm²) mm²) mm²)
5605 054007-11888 200 kV 16.00” 0.84”-1.38” 350-750 350-750 250-750 250-500 1/0 AWG- 1-4/0 AWG
(406 mm) (21,3-35,1 kcmil kcmil kcmil kcmil 350 kcmil (50-100
mm) (185-325 (185-325 (150-325 (150-250 (60-150 mm²)
mm²) mm²) mm²) mm²) mm²)
5606 054007-11893 200 kV 18.00” 1.08”-1.80” 750-1000 750-1500 500-1250 500-1250 350-750 4/0 AWG-
(457 mm) (27,4-45,7 kcmil kcmil kcmil kcmil kcmil 500 kcmil
(400-725
(400-500
(300-625
(185-325
(120-250
(300-625
mm)
5-46 kV 5607 054007-11897 200 kV 18.25” 1.31”-2.10” - mm²) mm²) mm²) mm²) mm²) mm²)
-
1000-1750
-
500-1250
750-1500
kcmil
kcmil
kcmil
(464 mm)
(33,3-53,3
(600-850
mm)
mm²)
mm²) (325-725 (300-625
mm²)
Medium Voltage Terminations,
5608 054007-09168 200 kV 19.50” 1.80”-2.75” - - - 1500-2000 1250-2000 1000-2000
(495 mm) (45,7-69,8 kcmil kcmil kcmil
mm) (800-1000 (725-1000 (600-1000
mm²) mm²) mm²)
