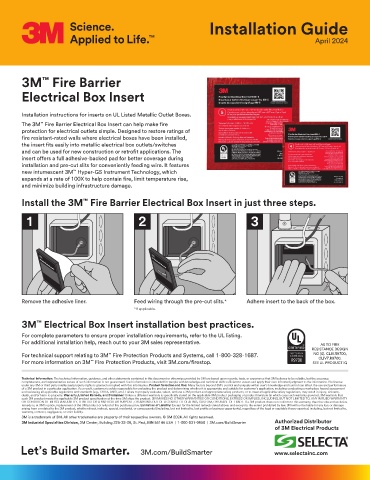

Installation Guide

April 2024

3M Fire Barrier
™
Electrical Box Insert

Installation instructions for inserts on UL Listed Metallic Outlet Boxes.
The 3M Fire Barrier Electrical Box Insert can help make fire
™
protection for electrical outlets simple. Designed to restore ratings of
fire resistant-rated walls where electrical boxes have been installed,
the insert fits easily into metallic electrical box outlets/switches
and can be used for new construction or retrofit applications. The
insert offers a full adhesive-backed pad for better coverage during
installation and pre-cut slits for conveniently feeding wire. It features
™
new intumescent 3M Hyper-GS Instrument Technology, which
expands at a rate of 100X to help contain fire, limit temperature rise,
and minimize building infrastructure damage.
Install the 3M Fire Barrier Electrical Box Insert in just three steps.
™

1 2 3

Fir
e Barrier
Fire Barrier Electrical Box Insert Electrical Box Insert
Fire Barrier Electrical Box Insert
Fire Barrier Electrical Box Insert
Fire Barrier Electrical Box Insert
Fire Barrier Electrical Box Insert
Fire Barrier Electrical Box Insert
Remove the adhesive liner. Feed wiring through the pre-cut slits.* Adhere insert to the back of the box.
Fire Barrier Electrical Box Insert
Fire Barrier Electrical Box Insert
*If applicable.
3M Electrical Box Insert installation best practices.
™
For complete parameters to ensure proper installation requirements, refer to the UL listing.
For additional installation help, reach out to your 3M sales representative. AS TO FIRE
RESISTANCE DESIGN
For technical support relating to 3M Fire Protection Products and Systems, call 1-800-328-1687. NO (S). CLIV.R9700,
™
CLIV7.R9700.
For more information on 3M Fire Protection Products, visit 3M.com/firestop. SEE UL PRODUCT iQ
™
