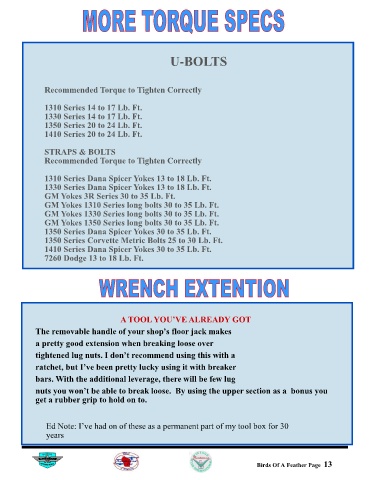

Page 13 - October

U-BOLTS

Recommended Torque to Tighten Correctly

1310 Series 14 to 17 Lb. Ft.
1330 Series 14 to 17 Lb. Ft.
1350 Series 20 to 24 Lb. Ft.
1410 Series 20 to 24 Lb. Ft.

STRAPS & BOLTS
Recommended Torque to Tighten Correctly

1310 Series Dana Spicer Yokes 13 to 18 Lb. Ft.
1330 Series Dana Spicer Yokes 13 to 18 Lb. Ft.
GM Yokes 3R Series 30 to 35 Lb. Ft.
GM Yokes 1310 Series long bolts 30 to 35 Lb. Ft.
GM Yokes 1330 Series long bolts 30 to 35 Lb. Ft.
GM Yokes 1350 Series long bolts 30 to 35 Lb. Ft.
1350 Series Dana Spicer Yokes 30 to 35 Lb. Ft.
1350 Series Corvette Metric Bolts 25 to 30 Lb. Ft.
1410 Series Dana Spicer Yokes 30 to 35 Lb. Ft.
7260 Dodge 13 to 18 Lb. Ft.

A TOOL YOU’VE ALREADY GOT
The removable handle of your shop’s floor jack makes

a pretty good extension when breaking loose over
tightened lug nuts. I don’t recommend using this with a

ratchet, but I’ve been pretty lucky using it with breaker
bars. With the additional leverage, there will be few lug

nuts you won’t be able to break loose. By using the upper section as a bonus you
get a rubber grip to hold on to.

Ed Note: I’ve had on of these as a permanent part of my tool box for 30
years

Birds Of A Feather Page 13
