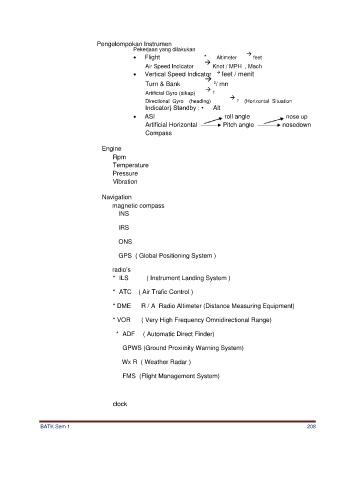

Pengelompokan Instrumen
Pekerjaan yang dilakukan
• Flight * Altimeter → feet
Air Speed Indicator → Knot / MPH , Mach
• Vertical Speed Indicator → feet / menit
→
Turn & Bank º/ mn
Artificial Gyro (sikap) → º →
Directional Gyro (heading) º (Horizontal Situation
Indicator) Standby : • Alt
• ASI roll angle nose up
Artificial Horizontal Pitch angle nosedown
Compass

Engine

Rpm
Temperature
Pressure
Vibration

Navigation

magnetic compass
INS

IRS

ONS

GPS ( Global Positioning System )

radio’s

* ILS ( Instrument Landing System )

* ATC ( Air Trafic Control )

* DME R / A Radio Altimeter (Distance Measuring Equipment)

* VOR ( Very High Frequency Omnidirectional Range)

* ADF ( Automatic Direct Finder)

GPWS (Ground Proximity Warning System)

Wx R ( Weather Radar )

FMS (Flight Management System)

clock
