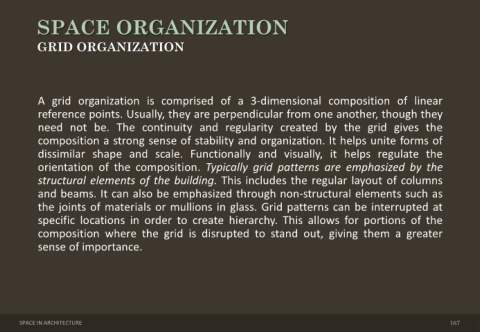

SPACE ORGANIZATION

GRID ORGANIZATION

A grid organization is comprised of a 3-dimensional composition of linear

reference points. Usually, they are perpendicular from one another, though they

need not be. The continuity and regularity created by the grid gives the

composition a strong sense of stability and organization. It helps unite forms of
dissimilar shape and scale. Functionally and visually, it helps regulate the

orientation of the composition. Typically grid patterns are emphasized by the

structural elements of the building. This includes the regular layout of columns
and beams. It can also be emphasized through non-structural elements such as

the joints of materials or mullions in glass. Grid patterns can be interrupted at

specific locations in order to create hierarchy. This allows for portions of the
composition where the grid is disrupted to stand out, giving them a greater

sense of importance.
