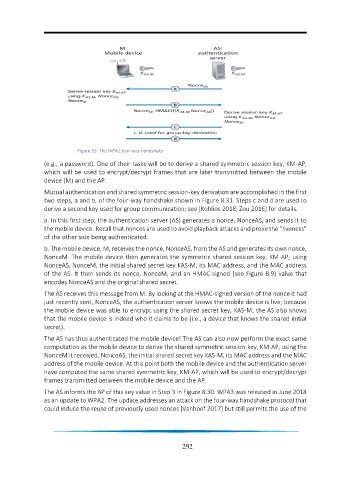

Figure 55: The WPA2 four-way handshake
(e.g., a password). One of their tasks will be to derive a shared symmetric session key, KM-AP,
which will be used to encrypt/decrypt frames that are later transmitted between the mobile
device (M) and the AP.

Mutual authentication and shared symmetric session-key derivation are accomplished in the first
two steps, a and b, of the four-way handshake shown in Figure 8.31. Steps c and d are used to
derive a second key used for group communication; see [Kohlios 2018; Zou 2016] for details.

a. In this first step, the authentication server (AS) generates a nonce, NonceAS, and sends it to
the mobile device. Recall that nonces are used to avoid playback attacks and prove the “liveness”
of the other side being authenticated.

b. The mobile device, M, receives the nonce, NonceAS, from the AS and generates its own nonce,
NonceM. The mobile device then generates the symmetric shared session key, KM-AP, using
NonceAS, NonceM, the initial shared secret key KAS-M, its MAC address, and the MAC address
of the AS. It then sends its nonce, NonceM, and an HMAC-signed (see Figure 8.9) value that
encodes NonceAS and the original shared secret.

The AS receives this message from M. By looking at the HMAC-signed version of the nonce it had
just recently sent, NonceAS, the authentication server knows the mobile device is live; because
the mobile device was able to encrypt using the shared secret key, KAS-M, the AS also knows
that the mobile device is indeed who it claims to be (i.e., a device that knows the shared initial
secret).

The AS has thus authenticated the mobile device! The AS can also now perform the exact same
computation as the mobile device to derive the shared symmetric session-key, KM-AP, using the
NonceM it received, NonceAS, the initial shared secret key KAS-M, its MAC address and the MAC
address of the mobile device. At this point both the mobile device and the authentication server
have computed the same shared symmetric key, KM-AP, which will be used to encrypt/decrypt
frames transmitted between the mobile device and the AP.
The AS informs the AP of this key value in Step 3 in Figure 8.30. WPA3 was released in June 2018
as an update to WPA2. The update addresses an attack on the four-way handshake protocol that
could induce the reuse of previously used nonces [Vanhoef 2017] but still permits the use of the
