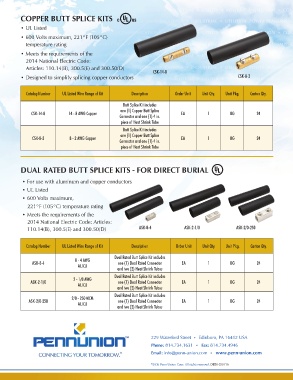

P. 2

COPPER BUTT SPLICE KITS                                     CSK-14-8                          CSK-8-2

• UL Listed

• 600 Volts maximum, 221°F (105°C)
	 temperature rating

• Meets the requirements of the
	 2014 National Electric Code:
	 Articles: 110.14(B), 300.5(E) and 300.50(D)

• Designed to simplify splicing copper conductors

Catalog Number  UL Listed Wire Range of Kit         Description                   Order Unit Unit Qty. Unit Pkg. Carton Qty.
                                                                                     EA 1 BG 24
CSK-14-8        14 - 8 AWG Copper              Butt Splice Kit includes              EA 1 BG 24
                                             one (1) Copper Butt Splice
CSK-8-2         8 - 2 AWG Copper             Connector and one (1) 4 in.
                                             piece of Heat Shrink Tube

                                               Butt Splice Kit includes
                                             one (1) Copper Butt Splice
                                             Connector and one (1) 4 in.
                                             piece of Heat Shrink Tube

DUAL RATED BUTT SPLICE KITS - FOR DIRECT BURIAL

• For use with aluminum and copper conductors      ASK-8-4                        ASK-2-1/0   ASK-2/0-250

• UL Listed

• 600 Volts maximum,

	 221°F (105°C) temperature rating

• Meets the requirements of the
	 2014 National Electric Code: Articles:
	 110.14(B), 300.5(E) and 300.50(D)

Catalog Number  UL Listed Wire Range of Kit            Description                Order Unit  Unit Qty. Unit Pkg.  Carton Qty.
   ASK-8-4                                                                           EA          1 BG                  24
  ASK-2-1/0             8 - 4 AWG            Dual Rated Butt Splice Kit includes     EA          1 BG                  24
                         AL/CU                 one (1) Dual Rated Connector          EA          1 BG                  24
 ASK-2/0-250                                  and two (2) Heat Shrink Tubes
                       2 - 1/0 AWG
                         AL/CU               Dual Rated Butt Splice Kit includes
                                               one (1) Dual Rated Connector
                     2/0 - 250 MCM            and two (2) Heat Shrink Tubes
                         AL/CU
                                             Dual Rated Butt Splice Kit includes
                                               one (1) Dual Rated Connector
                                              and two (2) Heat Shrink Tubes

                                                   229 Waterford Street • Edinboro, PA 16412 USA
                                                   Phone: 814.734.1631 • Fax: 814.734.4946
                                                   Email: info@penn-union.com • www.penn-union.com

                                                   ©2016 Penn-Union Corp. All rights reserved. DBSK-SS0716
