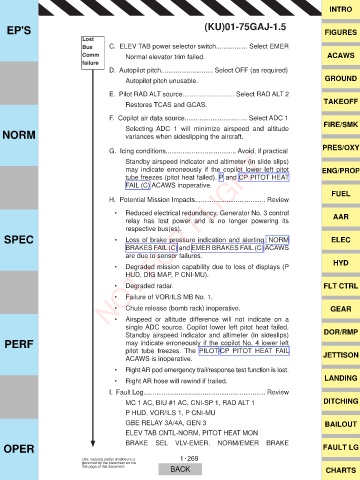

Page 309 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

Lost
Bus C. ELEV TAB power selector switch................. Select EMER
Comm Normal elevator trim failed. ACAWS
failure
D. Autopilot pitch............................ Select OFF (as required)
Autopilot pitch unusable. GROUND

E. Pilot RAD ALT source............................ Select RAD ALT 2
TAKEOFF
Restores TCAS and GCAS.

F. Copilot air data source................................. Select ADC 1 FIRE/SMK
NORM Selecting ADC 1 will minimize airspeed and altitude
variances when sideslipping the aircraft.
PRES/OXY
G. Icing conditions...................................... Avoid, if practical
Standby airspeed indicator and altimeter (in slide slips)
may indicate erroneously if the copilot lower left pitot ENG/PROP
tube freezes (pitot heat failed). P and CP PITOT HEAT
FAIL (C) ACAWS inoperative.
FUEL
H. Potential Mission Impacts...................................... Review

‡ Reduced electrical redundancy. Generator No. 3 control AAR
relay has lost power and is no longer powering its
respective bus(es).
SPEC NOT FOR FLIGHT ELEC
‡
Loss of brake pressure indication and alerting. NORM
BRAKES FAIL (C) and EMER BRAKES FAIL (C) ACAWS
are due to sensor failures.
HYD
‡ Degraded mission capability due to loss of displays (P
HUD, DIG MAP, P CNI-MU).
‡ Degraded radar. FLT CTRL
‡ Failure of VOR/ILS MB No. 1.

‡ Chute release (bomb rack) inoperative. GEAR
‡ Airspeed or altitude difference will not indicate on a
single ADC source. Copilot lower left pitot heat failed. DOR/RMP
Standby airspeed indicator and altimeter (in sideslips)
PERF may indicate erroneously if the copilot No. 4 lower left

pitot tube freezes. The PILOT/CP PITOT HEAT FAIL JETTISON
ACAWS is inoperative.

‡ Right AR pod emergency trail/response test function is lost.
LANDING
‡ Right AR hose will rewind if trailed.
I. Fault Log.................................................................. Review
MC 1 AC, BIU #1 AC, CNI-SP 1, RAD ALT 1 DITCHING
P HUD, VOR/ILS 1, P CNI-MU
GBE RELAY 3A/4A, GEN 3 BAILOUT
ELEV TAB CNTL-NORM, PITOT HEAT MON

OPER BRAKE SEL VLV-EMER, NORM/EMER BRAKE FAULT LG

Use, copying and/or disclosure is 1 -269
governed by the statement on the
title page of this document. BACK CHARTS
