Page 132 - ECG dr shamol_Slide

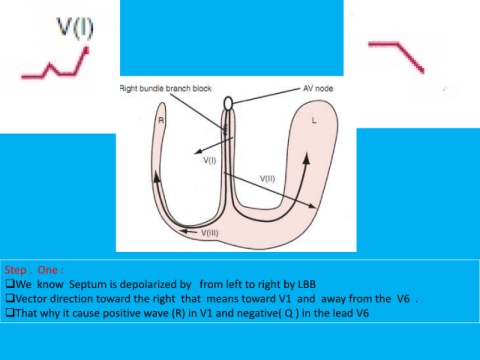

Step . One :
We know Septum is depolarized by from left to right by LBB

Vector direction toward the right that means toward V1 and away from the V6 .

That why it cause positive wave (R) in V1 and negative( Q ) in the lead V6
