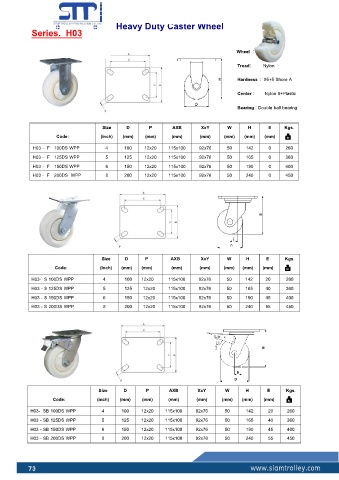

Page 78 - Catalog_Hotel_091165
P. 78
Heavy Duty Caster Wheel
Series. H03
Wheel : WPP
Tread: Nylon
Hardness : 95+5 Shore A
1 Center : Nylon 6+Plastic
Bearing : Double ball bearing
Size D P AXB XxY W H E Kgs.
Code: (inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
H03 - F 100DS WPP 4 100 12x20 115x100 92x76 50 142 0 260
2 H03 - F 125DS WPP 5 125 12x20 115x100 92x76 50 165 0 360
H03 - F 150DS WPP 6 150 12x20 115x100 92x76 50 190 0 400
H03 - F 200DS WPP 8 200 12x20 115x100 92x76 50 240 0 450
Size D P AXB XxY W H E Kgs.
Code: (inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
H03- S 100DS WPP 4 100 12x20 115x100 92x76 50 142 20 260
H03 - S 125DS WPP 5 125 12x20 115x100 92x76 50 165 40 360
H03 - S 150DS WPP 6 150 12x20 115x100 92x76 50 190 45 400
H03 - S 200DS WPP 8 200 12x20 115x100 92x76 50 240 55 450
Size D P AXB XxY W H E Kgs.
Code: (inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
H03- SB 100DS WPP 4 100 12x20 115x100 92x76 50 142 20 260
H03 - SB 125DS WPP 5 125 12x20 115x100 92x76 50 165 40 360
H03 - SB 150DS WPP 6 150 12x20 115x100 92x76 50 190 45 400
H03 - SB 200DS WPP 8 200 12x20 115x100 92x76 50 240 55 450
73 www.siamtrolley.com
