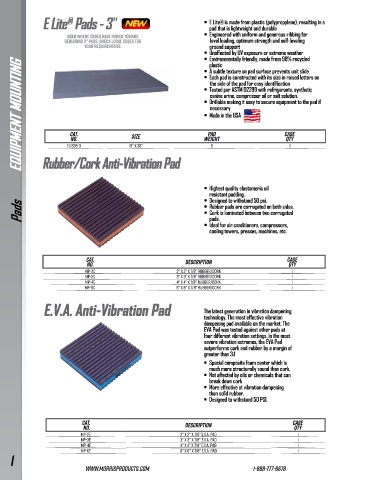

Page 4 - 2025 MORRIS Diversitech HVAC Catalog
P. 4
E Lite Pads - 3" • E Lite® is made from plastic (polypropylene), resulting in a
Pads - 3
E Lite
®®
pad that is lightweight and durable
Used where codes have moved toward • Engineered with uniform and generous ribbing for
requiring 3" pads, check local codes for level loading, optimum strength and self-leveling
your requirements. ground support
• Unaffected by UV exposure or extreme weather
EQUIPMENT MOUNTING
EQUIPMENT MOUNTING
• Environmentally friendly, made from 98% recycled
plastic
• A subtle texture on pad surface prevents unit slide
• Each pad is constructed with its size in raised letters on
the side of the pad for easy identification
• Tested per ASTM D2299 with refrigerants, synthetic
canine urine, compressor oil or salt solution.
• Drillable making it easy to secure equipment to the pad if
necessary
• Made in the USA
CAT. Size Pad Case
NO. Weight Qty
EL1838-3 18" X 38" 9 1
Rubber/Cork Anti-Vibration Pad
Rubber/Cork Anti-Vibration Pad
• Highest quality elastomeric oil
resistant padding.
Pads • Designed to withstand 50 psi.
• Rubber pads are corrugated on both sides.
• Cork is laminated between two corrugated
pads.
• Ideal for air conditioners, compressors,
cooling towers, presses, machines, etc.
CAT. DESCRIPTION Case
NO. Qty
MP-2C 2" x 2" x 7/8" Rubber/Cork 1
MP-3C 3" x 3" x 7/8" Rubber/Cork 1
MP-4C 4" x 4" x 7/8" Rubber/Cork 1
MP-6C 6" x 6" x 7/8" Rubber/Cork 1
E.V.A. Anti-Vibration Pad The latest generation in vibration dampening
E.V.A. Anti-Vibration Pad
technology. The most effective vibration
dampening pad available on the market. The
EVA Pad was tested against other pads at
four different vibration settings. In the most
severe vibration extremes, the EVA Pad
outperforms cork and rubber by a margin of
greater than 3:1
• Special composite foam center which is
much more structurally sound than cork.
• Not affected by oils or chemicals that can
break down cork
• More effective at vibration dampening
than solid rubber.
• Designed to withstand 50 PSI.
CAT. DESCRIPTION Case
NO. Qty
MP-2E 2" x 2" x 7/8" E.V.A. Pad 1
MP-3E 3" x 3" x 7/8" E.V.A. Pad 1
MP-4E 4" x 4" x 7/8" E.V.A. Pad 1 1
6" x 6" x 7/8" E.V.A. Pad
MP-6E
1
www.morrisproducts.com 1-888-777-6678
