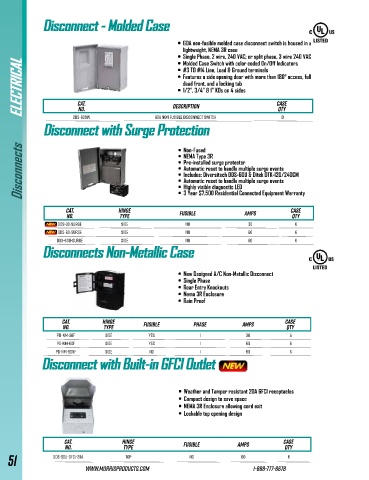

Page 54 - 2025 MORRIS Diversitech HVAC Catalog

Disconnect - Molded CaseDisconnect - Molded Case

• 60A non-fusible molded case disconnect switch is housed in a
lightweight, NEMA 3R case
• Single Phase, 2 wire, 240 VAC; or split phase, 3 wire 240 VAC
ELECTRICAL ELECTRICAL CAT. DESCRIPTION Case
• Molded Case Switch with color coded On/Off Indicators
• #3 TO #14 Line, Load & Ground terminals
• Features a side opening door with more than 180° access, full
dead front, and a locking tab
• 1/2", 3/4" & 1" KOs on 4 sides

NO.
60A Non Fusible Disconnect Switch
10
DDS-60SW
Disconnect with Surge Protection Qty
Disconnect with Surge Protection
Disconnects • Non-Fused

• NEMA Type 3R
• Pre-installed surge protector
• Automatic reset to handle multiple surge events
• Includes: Diversitech DDS-60U & Ditek DTK-120/240CM
• Automatic reset to handle multiple surge events
• Highly visible diagnostic LED

Case
CAt. Hinge • 3 Year $7,500 Residential Connected Equipment Warranty
Fusible
Amps
NO. Type Qty
DDS-30-SURGE Side NO 30 6
DDS-60-SURGE Side NO 60 6
DDS-60U-SURGE Side NO 60 6
Disconnects Non-Metallic CaseDisconnects Non-Metallic Case

• New Designed A/C Non-Metallic Disconnect
• Single Phase
• Rear Entry Knockouts
• Nema 3R Enclosure
• Rain Proof

CAT. Hinge Case
NO. Type Fusible Phase Amps Qty
PD-NM-30F Side Yes 1 30 6
PD-NM-60F Side Yes 1 60 6
PD-NM-60NF Side No 1 60 6
Disconnect with Built-in GFCI OutletDisconnect with Built-in GFCI Outlet

• Weather and Tamper resistant 20A GFCI receptacles
• Compact design to save space
• NEMA 3R Enclosure allowing cord exit
• Lockable top opening design

CAt. Hinge Fusible Amps Case
NO. Type Qty
51 DDS-60U-GFCI-20A Top No 60 6
