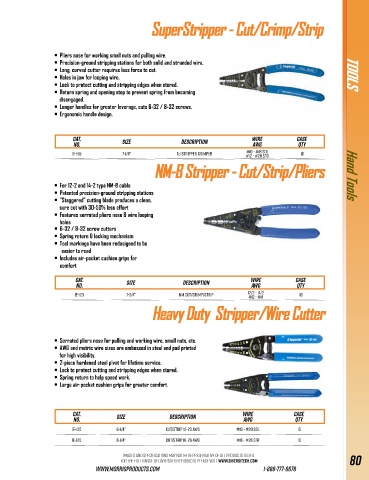

Page 83 - 2025 MORRIS Diversitech HVAC Catalog

SuperStripper - Cut/Crimp/Strip
SuperStripper - Cut/Crimp/Strip

• Pliers nose for working small nuts and pulling wire.
• Precision-ground stripping stations for both solid and stranded wire.
• Long, curved cutter requires less force to cut.
• Holes in jaw for looping wire. TOOLS
• Lock to protect cutting and stripping edges when stored.
• Return spring and opening stop to prevent spring from becoming
TOOLS
disengaged.
• Longer handles for greater leverage, cuts 6-32 / 8-32 screws.
• Ergonomic handle design.

Cat. Wire Case
No. Size Description Awg Qty
#10 - #18 Sol
IE-155 7-1/4" 5:1 Stripper Crimper #12 - #20 Std 10
NM-B Stripper - Cut/Strip/Pliers

NM-B Stripper - Cut/Strip/Pliers

• For 12-2 and 14-2 type NM-B cable Hand Tools
• Patented precision-ground stripping stations
• "Staggered" cutting blade produces a clean,
sure cut with 30-50% less effort
• Features serrated pliers nose & wire looping
holes
• 6-32 / 8-32 screw cutters
• Spring return & locking mechanism
• Tool markings have been redesigned to be
easier to read
• Includes air-pocket cushion grips for
comfort

Cat. Wire Case
No. Size description Awg Qty
IE-123 7-3/4” NM Cut/Crimp/Strip 12/2 - 14/2 10
#12 - #14
Heavy Duty Stripper/Wire CutterHeavy Duty Stripper/Wire Cutter

• Serrated pliers nose for pulling and working wire, small nuts, etc.
• AWG and metric wire sizes are embossed in steel and pad printed
for high visibility.
• 2-piece hardened steel pivot for lifetime service.
• Lock to protect cutting and stripping edges when stored.
• Spring return to help speed work.
• Large air-pocket cushion grips for greater comfort.

Cat. Size description wire Case
No. awg Qty
IE-120 6-1/4” Cut/Strip 10-20 awg #10 - #20 Sol 10
Ie-125 6-1/4” Cut/Strip 16-26 awg #16 - #26 Str 10

Images and Specifications may not be representative of all products listed.
