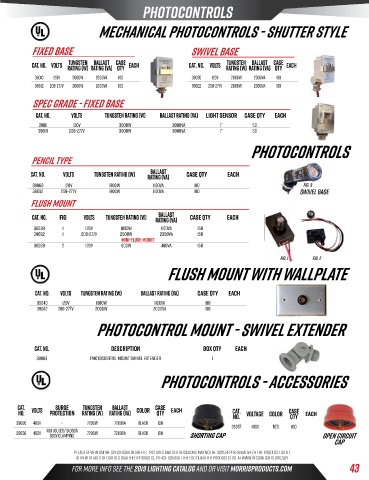

Page 45 - 2020 October Lighting Catalog

PHOTOCONTROLS

Mechanical Photocontrols - Shutter Style

Fixed Base Swivel Base

Tungsten Ballast Case
Tungsten Ballast Case
Cat. No. Volts Rating (W) Rating (VA) Qty each Cat. No. Volts Rating (W) Rating (VA) Qty each
39010 120V 2000W 2000VA 100 39020 120V 2000W 2000VA 100
39012 208-277V 2000W 2000VA 100 39022 208-277V 2000W 2000VA 100

Spec Grade - Fixed Base
Cat. No. Volts Tungsten Rating (W) Ballast Rating (VA) Light Sensor Case Qty EACH

39011 120V 3000W 3000VA 1” 50
39013 208-277V 3000W 3000VA 1” 50
Photocontrols

Pencil Type

Ballast
Cat. No. Volts Tungsten Rating (W) Rating (VA) Case Qty each
39060 120V 1800W 1100VA 100 Fig. 3
39062 208-277V 1800W 1100VA 100 Swivel Base
Flush Mount

Ballast
Cat. No. Fig Volts Tungsten Rating (W) Rating (VA) Case Qty each
39030 1 120V 1800W 1100VA 150
39032 1 208-277V 2000W 2000VA 150
Mini-Flush Mount
39069 2 120V 600W 480VA 150

Fig. 1 Fig. 2
Flush Mount with Wallplate

Cat. No. Volts Tungsten Rating (W) Ballast Rating (VA) Case Qty each
39040 120V 1800W 1100VA 100
39042 208-277V 2000W 2000VA 100

Photocontrol Mount - Swivel Extender

Cat. No. Description Box Qty each
39063 Photocontrol Mount Swivel Extender 1

Photocontrols - Accessories

Cat. Volts Surge Tungsten Ballast Color Case
No. Protection Rating (W) Rating (VA) Qty each Cat. Voltage Color Case EACh
No.
Qty
39056 480v - 7200W 7200VA Black 100 39057 480v Red 100
39058 480v 460 Joules/10,000A 7200W 7200VA Black 100
820V Clamping Shorting Cap Open Circuit
Cap
Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 43
