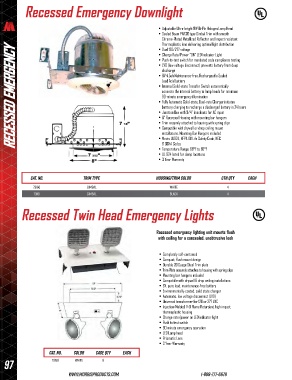

P. 102
Recessed Emergency Downlight
• Adjustable Ultra-bright 8W Bi-Pin Halogen Lamp Head
• Sealed Beam PAR36 type Gimbal Trim with smooth
Chrome-Plated Metallized Reflector and Impact resistant
RECESSED EMERGENCY
Thermoplastic lens delivering optimal light distribution
• Dual 120/277 voltage
• Charge Rate/Power “ON” LED Indicator Light
• Push-to-test switch for mandated code compliance testing
• LVD (low voltage disconnect) prevents battery from deep
discharge
• 6V 4.5ah Maintenance-free, Rechargeable Sealed
Lead Acid battery
• Internal Solid-state Transfer Switch automatically
connects the internal battery to lamp heads for minimum
90-minute emergency illumination
• Fully Automatic Solid-state, Dual-rate Charger initiates
batttery charging to recharge a discharged battery in 24 hours
• Junction Box with 3/4” knockouts for AC input
• 6” Recessed Housing with mounting bar hangers
• Trim securely attached to housing with spring clips
• Compatible with drywall or drop ceiling mount
installations, Mounting Bar Hangers included
• Meets UL924, NFPA 101 Life Safety Code, NEC
& OSHA Codes
• Temperature Range: 68°F to 86°F
• UL 924 listed for damp locations
• 3 Year Warranty
Cat. No. Trim Type Housing/Trim Color Ctn Qty Each
73160 Gimbal White 4
73161 Gimbal Black 4
Recessed Twin Head Emergency Lights
Recessed emergency lighting unit mounts flush
with ceiling for a concealed, unobtrusive look
• Completely self-contained
• Compact, flush mount design
• Durable 20 Gauge Steel Trim plate
• Trim Plate securely attaches to housing with spring clips
• Mounting bar hangers included
• Compatible with drywall & drop ceiling installations
• 6V, pure lead, maintenance-free battery
• Environmentally-coated, solid state charger
• Automatic, low voltage disconnect (LVD)
• Universal transformer for 120 or 277 VAC
• Injection-Molded, V-O Flame Retardant, high impact,
thermoplastic housing
• Charge rate/power on LED indicator light
• Push to test switch
• 90 minute emergency operation
• LED Lamp head
• Prismatic Lens
• 3 Year Warranty
Cat. No. Color Case Qty Each
97 73158 White 6
97 www.morrisproducts.com 1-888-777-6678
