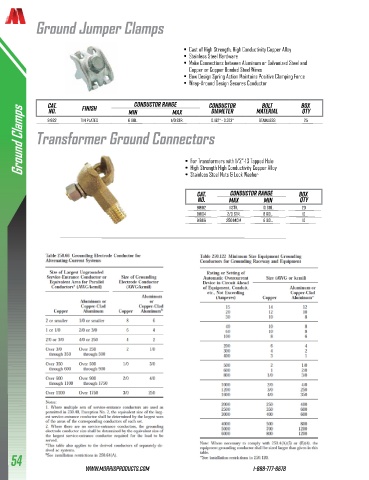

Page 56 - MORRIS 2026 Connectors & Grounding
P. 56
Ground Jumper Clamps
• Cast of High Strength, High Conductivity Copper Alloy
• Stainless Steel Hardware
• Make Connections between Aluminum or Galvanized Steel and
Copper or Copper Bonded Steel Wires
• Bow Design Spring Action Maintains Positive Clamping Force
• Wrap-Around Design Secures Conductor Box
Conductor Range
Cat.
Conductor
Bolt
Ground Clamps Transformer Ground Connectors Stainless 25
Finish
No.
Material
Diameter
Qty
Min
Max
91922
Tin Plated
1/0 STR.
6 SOL.
0.162" - 0.373"
• For Transformers with 1/2"-13 Tapped Hole
• High Strength High Conductivity Copper Alloy
• Stainless Steel Nuts & Lock Washer
Cat. Conductor Range Box
No. Max Min Qty
91902 1 STR. 10 SOL. 20
91904 2/0 STR. 8 SOL. 10
91906 250 MCM 6 SOL. 10
54
www.morrisproducts.com 1-888-777-6678
