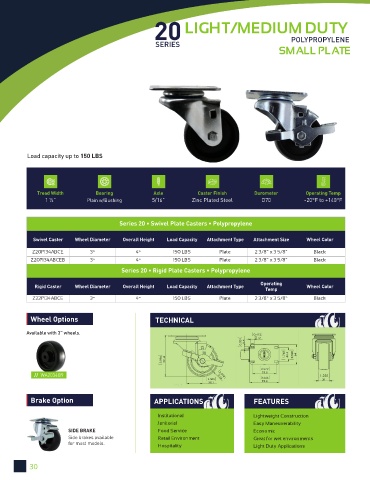

Page 30 - Going Circular_Final_012822
P. 30
LIGHT/MEDIUM DUTY
POLYPROPYLENE
SERIES
SMALL PLATE
Load capacity up to 150 LBS
Tread Width Bearing Axle Caster Finish Durometer Operating Temp
1 1/4” Plain w/Bushing 5/16” Zinc Plated Steel D70 -20°F to +140°F
Series 20 • Swivel Plate Casters • Polypropylene
Swivel Caster Wheel Diameter Overall Height Load Capacity Attachment Type Attachment Size Wheel Color
Z20P134ABCE 3” 4” 150 LBS Plate 2 3/8” x 3 5/8” Black
Z20P134ABCEB 3” 4” 150 LBS Plate 2 3/8” x 3 5/8” Black
Series 20 • Rigid Plate Casters • Polypropylene
Operating
Rigid Caster Wheel Diameter Overall Height Load Capacity Attachment Type Wheel Color
Temp
Z22P134ABCE 3” 4” 150 LBS Plate 2 3/8” x 3 5/8” Black
Wheel Options TECHNICAL
Available with 3" wheels.
// WA2034B9
Brake Option APPLICATIONS FEATURES
Institutional Lightweight Construction
Janitorial Easy Maneuverability
SIDE BRAKE Food Service Economic
Side brakes available Retail Environment Great for wet environments
for most models.
Hospitality Light Duty Applications
30
