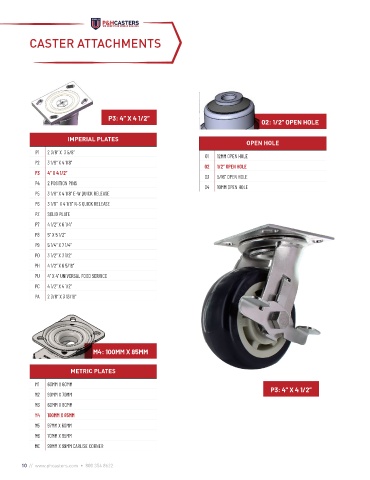

CASTER ATTACHMENTS

P3: 4” X 4 1/2”
02: 1/2” OPEN HOLE

IMPERIAL PLATES
OPEN HOLE
P1 2 3/8” X 3 5/8”
01 12MM OPEN HOLE
P2 3 1/8” X 4 1/8”
O2 1/2” OPEN HOLE
P3 4” X 4 1/2”
03 5/16” OPEN HOLE
P4 2 POSITION PINS
04 10MM OPEN HOLE
P5 3 1/8“ X 4 1/8” E-W QUICK RELEASE
P6 3 1/8” X 4 1/8” N-S QUICK RELEASE
PZ SOLID PLATE

P7 4 1/2” X 6 1/4”
P8 5” X 5 1/2”
P9 5 1/4” X 7 1/4”
P0 3 1/2” X 3 1/2”
PH 4 1/2” X 6 5/16”
PU 4” X 4” UNIVERSAL FOOD SERVICE
PC 4 1/2” X 4 1/2”
PA 2 3/8” X 3 13/16”

M4: 100MM X 85MM

METRIC PLATES
M1 6OMM X 60MM
P3: 4” X 4 1/2”
M2 90MM X 70MM
M3 60MM X 80MM
M4 100MM X 85MM
M5 97MM X 60MM
M6 70MM X 95MM
MC 99MM X 99MM CARLISE CORNER
