Page 19 - Ashley's files

0.84 0.84
21.5 21.5

0.33
1.02 26 8.3

6.16 156.4 3/8-16 UNC

Axle & nut

5.00
Tread durometer:
127
Shore A65 - A75
1.50
38.1 1.24
31.6

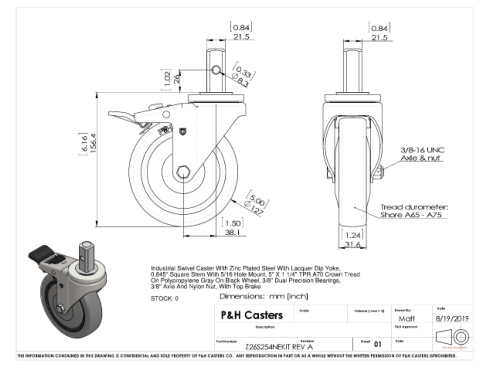

Industrial Swivel Caster With Zinc Plated Steel With Lacquer Dip Yoke,
0.845" Square Stem Wtih 5/16 Hole Mount, 5" X 1 1/4" TPR A70 Crown Tread
On Polypropylene Gray On Black Wheel, 3/8" Dual Precision Bearings,
3/8" Axle And Nylon Nut, With Top Brake
Dimensions: mm [inch]
STOCK: 0
Date
P&H Casters Scale Volume ( mm ^ 3) Drawn By: 8/19/2019
Matt
Description P&H Approval

Part Number Revision Sheet 01 Date
Z26S254NEKIT REV A
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND SOLE PROPERTY OF P&H CASTERS CO. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF P&H CASTERS ISPROHIBITED.
