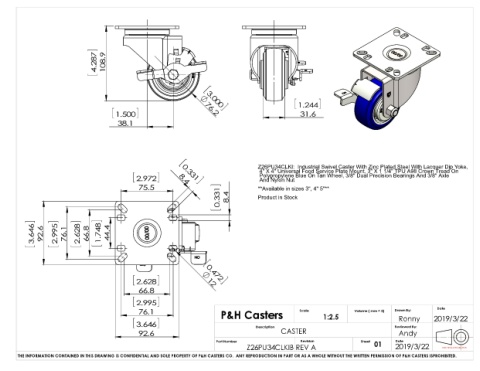

Z26PU34CLKI: Industrial Swivel Caster With Zinc Plated Steel With Lacquer Dip Yoke,
4" X 4" Universal Food Service Plate Mount, 3" X 1 1/4" TPU A98 Crown Tread On
2.972 8.4 Polypropylene Blue On Tan Wheel, 3/8" Dual Precision Bearings And 3/8" Axle
0.331
And Nylon Nut
75.5 **Available in sizes 3", 4" 5"**
0.331 8.4 Product in Stock

3.646 92.6 2.995 76.1 2.628 66.8 1.748 44.4

2.628 0.472
12
66.8

2.995
76.1 P&H Casters Scale 1:2.5 Volume ( mm ^ 3) Drawn By: Date
Ronny
3.646 Description Reviewed By: 2019/3/22
92.6 CASTER Andy
Part Number Revision Sheet 01 Date
Z26PU34CLKIB REV A 2019/3/22
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND SOLE PROPERTY OF P&H CASTERS CO. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF P&H CASTERS ISPROHIBITED.
