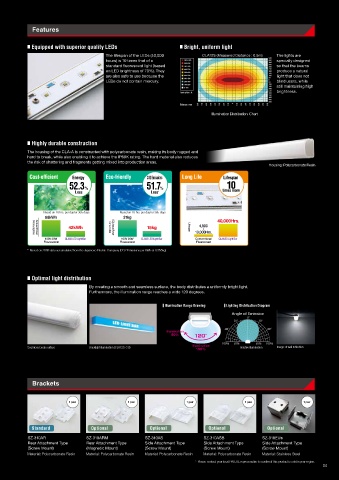

Page 5 - LED LIGHTING CATALOG

Features

■ Equipped with superior quality LEDs ■ Bright, uniform light
The lifespan of the LEDs (40,000 CLA12S (Measured Distance : 0.5m) The lights are
500
hours) is 10 times that of a 900 - 1000 450 specially designed
800 - 900 400
standard fluorescent light (based 700 - 800 500 so that the beams
300
600 - 700 250
on LED brightness of 70%). They 500 - 600 200 produce a natural
100
are also safe to use because the 400 - 500 150 light that does not
300 - 400 50
LEDs do not contain mercury. 200 - 300 0 50 blind users, while
100 - 200 100 still maintaining high
0 - 100 150
500
550
Lumination : lx 300 brightness.
350
400
450
500
Distanse : mm 800 700 600 500 400 300 200 100 0 100 200 300 400 500 600 700 800
Illumination Distribution Chart
■ Highly durable construction
The housing of the CLA-A is constructed with polycarbonate resin, making its body rugged and
hard to break, while also enabling it to achieve the IP69K rating. The hard material also reduces
the risk of shattering and fragments getting mixed into production areas.
Housing: Polycarbonate Resin
Cost-efficient Energy Eco-friendly CO2 Emissions Long Life Lifespan
10
52.3% 51.7 % times more
Less Less *

Based on 10 hrs. per day for 365 days Based on 10 hrs. per day for 365 days
88kWh 31kg
40,000Hrs.
4,000
42kWh Consumption CO2 Annual Power 15kg Lifespan 〜
13,000Hrs.
Annual Power
Consumption
100V 20W CLA6S LED Light Bar 100V 20W CLA6S LED Light Bar Conventional CLA LED Light Bar
Flourescent Flourescent Flourescent
* Based on 2008 data accumulated from the Japanese Electric Company (CO2 Emissions per kWh at 0.355kg)

■ Optimal light distribution
By creating a smooth and seamless surface, the body distributes a uniformly bright light.
Furthermore, the illumination range reaches a wide 120 degrees.

■ Illumination Range Drawing ■ Lighting Distribution Diagram
Angle of Emission
˃
˃ ˃
˃ ˃
Illumination
50% ˃
ˋ ˋ ˋ ˋ
Seamless body surface Backlight illumination (CLA12S-CD) Illumination Relative Illumination Image of wall reflection
100%

Brackets

1 pair 1 pair 1 pair 1 pair 1 pair

Standard Optional Optional Optional Optional

SZ-310AR SZ-310ARM SZ-310AS SZ-310ASB SZ-310EU※
Rear Attachment Type Rear Attachment Type Side Attachment Type Side Attachment Type Side Attachment Type
(Screw Mount) (Magnetic Mount) (Screw Mount) (Screw Mount) (Screw Mount)
Material: Polycarbonate Resin Material: Polycarbonate Resin Material: Polycarbonate Resin Material: Polycarbonate Resin Material: Stainless Steel
* Please contact your local PATLITE represenative to confirm if this product is sold in your region.
04
