Operating

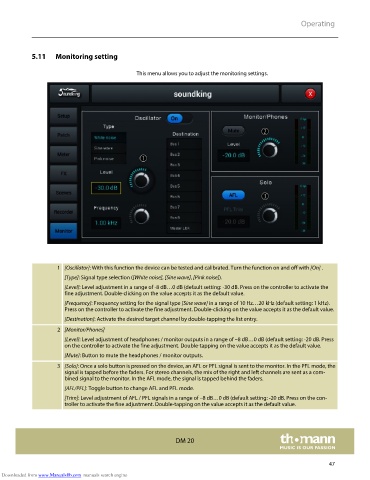

5.11 Monitoring setting

This menu allows you to adjust the monitoring settings.

1 [Oscillator]: With this function the device can be tested and calibrated. Turn the function on and off with [On] .
[Type]: Signal type selection ([White noise], [Sine wave], [Pink noise]).
[Level]: Level adjustment in a range of -8 dB…0 dB (default setting: -30 dB. Press on the controller to activate the
fine adjustment. Double-clicking on the value accepts it as the default value.
[Frequency]: Frequency setting for the signal type [Sine wave] in a range of 10 Hz…20 kHz (default setting: 1 kHz).
Press on the controller to activate the fine adjustment. Double-clicking on the value accepts it as the default value.
[Destination]: Activate the desired target channel by double-tapping the list entry.
2 [Monitor/Phones]
[Level]: Level adjustment of headphones / monitor outputs in a range of –8 dB…0 dB (default setting: -20 dB. Press
on the controller to activate the fine adjustment. Double-tapping on the value accepts it as the default value.
[Mute]: Button to mute the headphones / monitor outputs.

3 [Solo]: Once a solo button is pressed on the device, an AFL or PFL signal is sent to the monitor. In the PFL mode, the
signal is tapped before the faders. For stereo channels, the mix of the right and left channels are sent as a com‐
bined signal to the monitor. In the AFL mode, the signal is tapped behind the faders.
[AFL/PFL]: Toggle button to change AFL and PFL mode.
[Trim]: Level adjustment of AFL / PFL signals in a range of –8 dB…0 dB (default setting: -20 dB. Press on the con‐
troller to activate the fine adjustment. Double-tapping on the value accepts it as the default value.

DM 20

47
