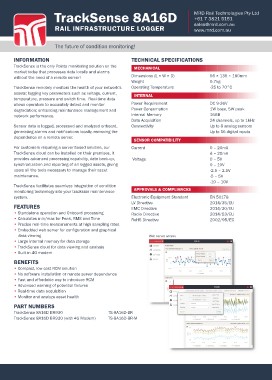

Page 13 - MRD Product Catalogue March 2018

TrackSense 8A16D MRD Rail Technologies Pty Ltd
+61 7 3821 5151
RAIL INFRASTRUCTURE LOGGER sales@mrd.com.au
www.mrd.com.au

The future of condition monitoring!

INFORMATION TECHNICAL SPECIFICATIONS 56 × 135 × 180mm
0.7kg
TrackSense is the only Points monitoring solution on the MECHANICAL -25 to 70°C
market today that processes data locally and alarms Dimensions (L × W × D)
without the need of a remote server! Weight DC 9-36V
Operating Temperature 1W base, 5W peak
TrackSense remotely monitors the health of your network’s 16GB
assets; logging key parameters such as voltage, current, INTERNAL 24 channels, up to 1kHz
temperature, pressure and switch time. Real-time data Power Requirement Up to 8 analog sensors
allows operators to accurately detect and monitor Power Consumption Up to 16 digital inputs
degradation; enhancing maintenance management and Internal Memory
network performance. Data Acquisition 0 – 20mA
Connectivity 4 – 20mA
Sensor data is logged, processed and analyzed onboard, 0 – 5V
generating alarms and notifications locally, removing the SENSOR COMPATIBILITY 0 – 10V
dependence on a remote server. Current -2.5 – 2.5V
-5 – 5V
For customers requiring a server based solution, our Voltage -10 – 10V
TrackSense cloud can be installed on their premises. It
provides advanced processing capability, data back-up, EN 50178
synchronization and reporting of all logged assets, giving 2014/35/EU
users all the tools necessary to manage their asset 2014/30/EU
maintenance. 2014/53/EU
2002/95/EC
TrackSense facilitates seamless integration of condition APPROVALS & COMPLIANCES
monitoring technology into your trackside maintenance Electronic Equipment Standard
system. LV Directive
EMC Directive
FEATURES Radio Directive
RoHS Directive
• Standalone operation and Onboard processing
• Calculates min/max for Peak, RMS and Time Web server access
• Precise real-time measurements at high sampling rates
• Embedded web server for configuration and graphical

data viewing
• Large internal memory for data storage
• TrackSense cloud for data viewing and analysis
• Built in 4G modem

BENEFITS

• Compact, low cost RCM solution
• No software installation or remote server dependence
• Fast and affordable way to introduce RCM
• Advanced warning of potential failures
• Real-time data acquisition
• Monitor and analyze asset health

PART NUMBERS TS-8A16D-BR
TS-8A16D-BR-M
TrackSense 8A16D BR930
TrackSense 8A16D BR930 (with 4G Modem)
