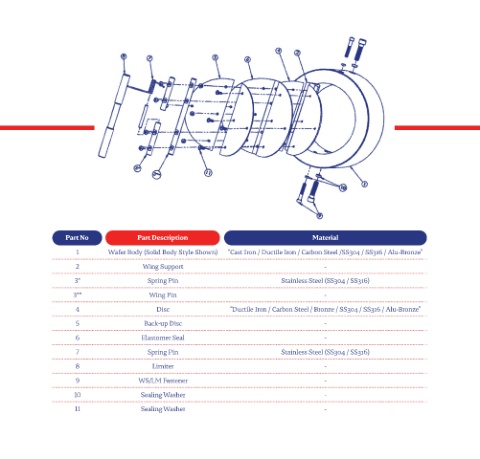

Part No Part Description Material

1 Wafer Body (Solid Body Style Shown) “Cast Iron / Ductile Iron / Carbon Steel /SS304 / SS316 / Alu-Bronze”
2 Wing Support -

3* Spring Pin Stainless Steel (SS304 / SS316)
3** Wing Pin -

4 Disc “Ductile Iron / Carbon Steel / Bronze / SS304 / SS316 / Alu-Bronze”
5 Back-up Disc -
6 Elastomer Seal -

7 Spring Pin Stainless Steel (SS304 / SS316)
8 Limiter -

9 WS/LM Fastener -
10 Sealing Washer -
11 Sealing Washer -
