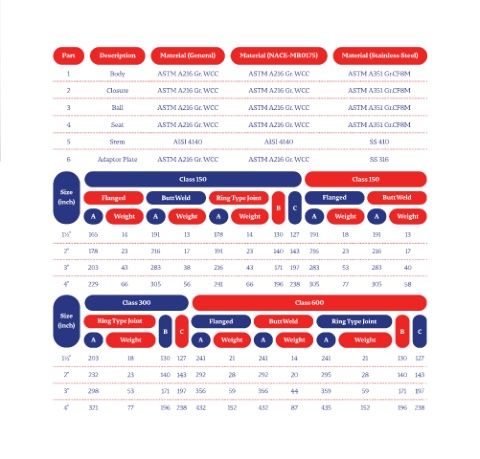

Part Description Material (General) Material (NACE-MR0175) Material (Stainless Steel)

1 Body ASTM A216 Gr. WCC ASTM A216 Gr. WCC ASTM A351 Gr.CF8M
2 Closure ASTM A216 Gr. WCC ASTM A216 Gr. WCC ASTM A351 Gr.CF8M

3 Ball ASTM A216 Gr. WCC ASTM A216 Gr. WCC ASTM A351 Gr.CF8M

4 Seat ASTM A216 Gr. WCC ASTM A216 Gr. WCC ASTM A351 Gr.CF8M

5 Stem AISI 4140 AISI 4140 SS 410

6 Adaptor Plate ASTM A216 Gr. WCC ASTM A216 Gr. WCC SS 316

Class 150 Class 150
Size
(inch) Flanged Butt Weld Ring Type Joint Flanged Butt Weld
B C
A Weight A Weight A Weight A Weight A Weight

1½’’ 165 14 191 13 178 14 130 127 191 18 191 13

2’’ 178 23 216 17 191 23 140 143 216 23 216 17
3’’ 203 43 283 38 216 43 171 197 283 53 283 40

4’’ 229 66 305 56 241 66 196 238 305 77 305 58

Class 300 Class 600

Size
(inch) Ring Type Joint Flanged Butt Weld Ring Type Joint
B C B C
A Weight A Weight A Weight A Weight

1½’’ 203 18 130 127 241 21 241 14 241 21 130 127

2’’ 232 23 140 143 292 28 292 20 295 28 140 143

3’’ 298 53 171 197 356 59 356 44 359 59 171 197
4’’ 321 77 196 238 432 152 432 87 435 152 196 238
