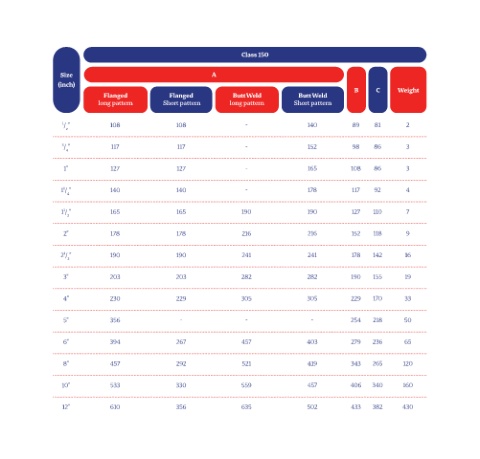

Class 150
Size A
(inch) B C Weight
Flanged Flanged Butt Weld Butt Weld
long pattern Short pattern long pattern Short pattern
1 / ’’ 108 108 - 140 89 81 2
2
3 / ’’ 117 117 - 152 98 86 3
4
1’’ 127 127 - 165 108 86 3
1 / ’’ 140 140 - 178 117 92 4
1
4
1 / ’’ 165 165 190 190 127 110 7
1
2
2’’ 178 178 216 216 152 118 9
2 / ’’ 190 190 241 241 178 142 16
1
2
3’’ 203 203 282 282 190 155 19
4’’ 230 229 305 305 229 170 33
5’’ 356 - - - 254 218 50
6’’ 394 267 457 403 279 236 65
8’’ 457 292 521 419 343 265 120
10’’ 533 330 559 457 406 340 160
12’’ 610 356 635 502 433 382 430
