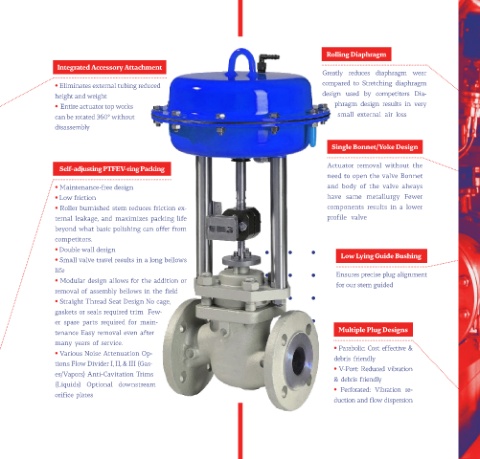

Rolling Diaphragm
Integrated Accessory Attachment
Greatly reduces diaphragm wear

• Eliminates external tubing reduced compared to Stretching diaphragm
height and weight design used by competitors Dia-
• Entire actuator top works phragm design results in very
can be rotated 360° without small external air loss
disassembly

Single Bonnet/Yoke Design

Self-adjusting PTFE V-ring Packing Actuator removal without the
need to open the valve Bonnet
• Maintenance-free design and body of the valve always
• Low friction have same metallurgy Fewer
• Roller burnished stem reduces friction ex- components results in a lower
ternal leakage, and maximizes packing life profile valve
beyond what basic polishing can offer from
competitors.
• Double wall design
• Small valve travel results in a long bellows Low Lying Guide Bushing
life Ensures precise plug alignment
• Modular design allows for the addition or for our stem guided
removal of assembly bellows in the field
• Straight Thread Seat Design No cage,
gaskets or seals required trim Few-
er spare parts required for main-
tenance Easy removal even after Multiple Plug Designs
many years of service. • Parabolic: Cost effective &
• Various Noise Attenuation Op- debris friendly
tions Flow Divider I, II, & III (Gas- • V-Port: Reduced vibration
es/Vapors) Anti-Cavitation Trims & debris friendly
(Liquids) Optional downstream • Perforated: Vibration re-
orifice plates
duction and flow dispersion
