P. 45

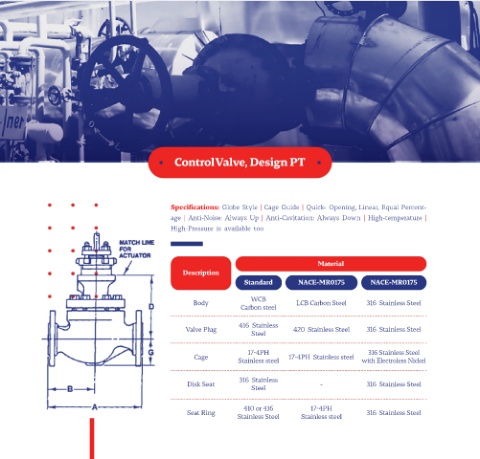

Control Valve, Design PT






                                               Specifications: Globe Style | Cage Guide | Quick- Opening, Linear, Equal Percent-
                                               age | Anti-Noise: Always Up | Anti-Cavitation: Always Down | High-temperature |
                                               High-Pressure is available too




                                                                                       Material
                                                   Description
                                                                   Standard       NACE-MR0175         NACE-MR0175

                                                                     WCB
                                                      Body        Carbon steel    LCB Carbon Steel   316  Stainless Steel


                                                   Valve Plug     416  Stainless   420  Stainless Steel  316  Stainless Steel
                                                                     Steel

                                                                    17-4PH                           316 Stainless Steel
                                                      Cage        Stainless steel  17-4PH  Stainless steel  with Electroless Nickel


                                                                  316  Stainless
                                                    Disk Seat        Steel              -            316  Stainless Steel

                                                                   410 or 416        17-4PH
                                                    Seat Ring     Stainless Steel  Stainless steel   316  Stainless Steel
