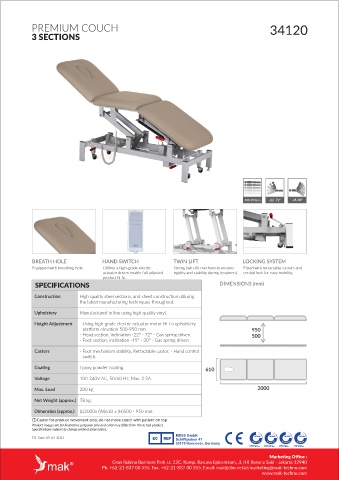

PREMIUM COUCH 34120
3 SECTIONS

500-950mm -22 -72° -45-30°
350-650mm 0-70°

BREATH HOLE HAND SWITCH TWIN LIFT LOCKING SYSTEM
Equipped with breathing hole. Utilizes a high-grade electric Strong twin-lift mechanism ensures Fitted with retractable casters and
actuator driven enable full adjusted rigidity and stability during treatment. central lock for easy mobility.
product hi-lo.
SPECIFICATIONS DIMENSIONS (mm)
Construction High quality steel sections, and sheet construction utilizing
the latest manufacturing techniques throughout.
Upholstery Manufactured in line using high quality vinyl.
Height Adjustment - Using high-grade electric actuator motor Hi-Lo upholstery
platform elevation 500-950 mm. 950
- Head section, inclination -22° - 72° - Gas spring driven. 500
- Foot section, inclination -45° - 30° - Gas spring driven.
Casters - Foot mechanism stability, Retractable castor, - Hand control
switch.
Coating Epoxy powder coating.
610
Voltage 100-240V AC, 50/60 Hz, Max. 2.5A.

Max. Load 200 kg. 2000
Net Weight (approx.) 78 kg.

Dimension (approx.) (L)2000x (W)610 x (H)500 - 950 mm.

! Castor for product movement only, do not move couch with patient on top
Product images are for illustrative purposes only and color may differ from the actual product.
Specifications subject to change without prior notice.
