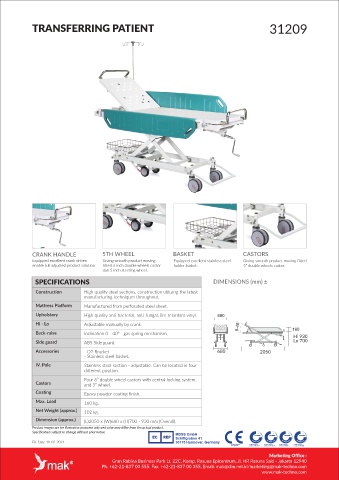

TRANSFERRING PATIENT 31209

CRANK HANDLE 5TH WHEEL BASKET CASTORS
Equipped excellent crank driven Giving smooth product moving Equipped excellent stainless steel Giving smooth product moving fitted
enable full adjusted product solution fitted 6 inch double wheels castor holder basket. 5” double wheels castor.
dan 5 inch steering wheel.
SPECIFICATIONS DIMENSIONS (mm) ±

Construction High quality steel sections, construction utilizing the latest
manufacturing techniques throughout.
Mattress Platform Manufactured from perforated steel sheet.
Upholstery High quality anti-bacterial, anti-fungal, fire retardant vinyl.
Hi - Lo Adjustable manually by crank.
Back-raise Inclination 0 - 40° - gas spring mechanism.
Hi 930
Side guard ABS Side guard. Lo 700
Accessories - O2 Bracket 680 2050
- Stainless steel basket.
IV. Pole Stainless steel section - adjustable. Can be located in four
different position.
Four 6” double wheel castors with central locking system,
Castors and 5” wheel.
Coating Epoxy powder coating finish.
Max. Load 160 kg.
Net Weight (approx.) 102 kg.
Dimension (approx.) (L)2050 x (W)680 x (H)700 - 930 mm (Overall).

Product images are for illustrative purposes only and color may differ from the actual product.
Specification subject to change without prior notice
