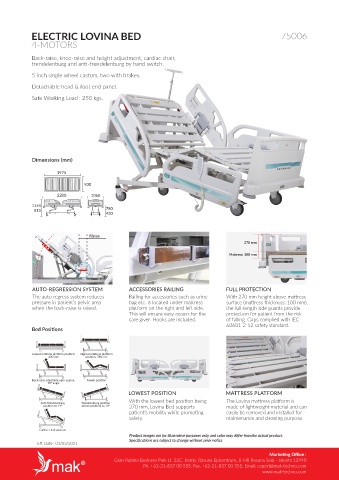

ELECTRIC LOVINA BED 75006
4-MOTORS

Back-raise, knee-raise and height adjustment, cardiac chair,
trendelenburg and anti-trendelenburg by hand switch.

5 inch single wheel castors, two with brakes.
Detachable head & foot end panel.

Safe Working Load : 250 kgs.

Dimensions (mm)

1975

900
2200 1060
1165
815 780
430

90mm
270 mm
Mattress: 100 mm

AUTO-REGRESSION SYSTEM ACCESSORIES RAILING FULL PROTECTION
The auto regress system reduces Railing for accessories such as urine With 270 mm height above mattress
pressure in patient’s pelvic area bag etc. is located under mattress surface (mattress thickness: 100 mm),
when the back-raise is raised. platform on the right and left side. the full-length side guards provide
This will ensure easy access for the protection for patient from the risk
care giver. Hooks are included. of falling. Gaps complied with IEC
60601-2-52 safety standard.
Bed Positions

Lowest mattress platform position: Highest mattress platform
430 mm position: 780 mm

Back-raise adjustable upto approx. Fowler position
70° angle
LOWEST POSITION MATTRESS PLATFORM
With the lowest bed position being The Lovina mattress platform is
Anti-Trendelenburg Trendelenburg position
position to 13° (shock position) to 13° 370 mm, Lovina Bed supports made of lightweight material and can
patient’s mobility while promoting easily be removed and installed for
safety. maintenance and cleaning purpose.

Cardiac chair position
Product images are for illustrative purposes only and color may differ fromthe actual product.
Specifications are subject to change without prior notice
Eff. Date : 01/03/2021
