Page 75 - Contoh Catalog Online

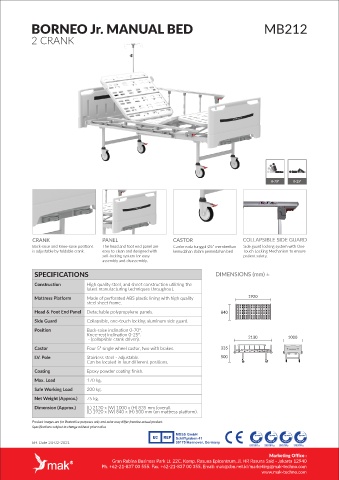

BORNEO Jr. MANUAL BED MB212

2 CRANK

0-70° 0-25°

CRANK PANEL CASTOR COLLAPSIBLE SIDE GUARD
Back-raise and Knee-raise positions The head and foot end panel are Castor roda tunggal Ø5" memberikan Side guard locking system with One
is adjustable by foldable crank. easy to clean and designed with kemudahan dalam pemindahan bed Touch Locking Mechanism to ensure
self-locking system for easy patient safety.
assembly and disassembly.

SPECIFICATIONS DIMENSIONS (mm) ±
Construction High quality steel, and sheet construction utilizing the
latest manufacturing techniques throughout.
Mattress Platform Made of perforated ABS plastic lining with high quality 1920
steel sheet frame.
Head & Foot End Panel Detachable polypropylene panels. 840
Side Guard Collapsible, one-touch locking aluminum side guard.
Position Back-raise inclination 0-70°.
Knee-rest inclination 0-25°. 2130 1000
- (collapsible crank driven).
Castor Four 5” single wheel castor, two with brakes. 335
I.V. Pole Stainless steel - adjustable. 500
Can be located in four different positions.
Coating Epoxy powder coating finish.

Max. Load 170 kg.
Safe Working Load 200 kg.
Net Weight (Approx.) 75 kg.

Dimension (Approx.) (L) 2130 x (W) 1000 x (H) 835 mm (overall.
(L) 1920 x (W) 840 x (H) 500 mm (on mattress platform).

Product images are for illustrative purposes only and color may differ fromthe actual product.
Specifications subject to change without prior notice
