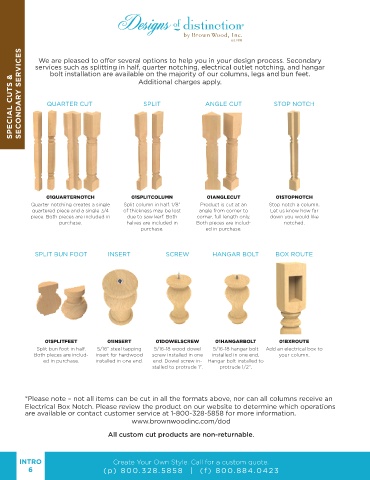

We are pleased to offer several options to help you in your design process. Secondary
bolt installation are available on the majority of our columns, legs and bun feet.
SPECIAL CUTS & SECONDARY SERVICES services such as splitting in half, quarter notching, electrical outlet notching, and hangar
Additional charges apply.

ANGLE CUT
QUARTER CUT
STOP NOTCH
SPLIT

01QUARTERNOTCH 01SPLITCOLUMN 01ANGLECUT 01STOPNOTCH
Quarter notching creates a single Split column in half. 1/8” Product is cut at an Stop notch a column.
quartered piece and a single 3/4 of thickness may be lost angle from corner to Let us know how far
piece. Both pieces are included in due to saw kerf. Both corner, full length only. down you would like
purchase. halves are included in Both pieces are includ- notched.
purchase. ed in purchase.

SPLIT BUN FOOT INSERT SCREW HANGAR BOLT BOX ROUTE

01SPLITFEET 01INSERT 01DOWELSCREW 01HANGARBOLT 01BXROUTE
Split bun foot in half. 5/16” steel tapping 5/16-18 wood dowel 5/16-18 hangar bolt Add an electrical box to
Both pieces are includ- insert for hardwood screw installed in one installed in one end. your column.
ed in purchase. installed in one end. end. Dowel screw in- Hangar bolt installed to
stalled to protrude 1”. protrude 1/2”.

*Please note – not all items can be cut in all the formats above, nor can all columns receive an
Electrical Box Notch. Please review the product on our website to determine which operations
are available or contact customer service at 1-800-328-5858 for more information.
www.brownwoodinc.com/dod

All custom cut products are non-returnable.

INTRO Create Your Own Style. Call for a custom quote.
