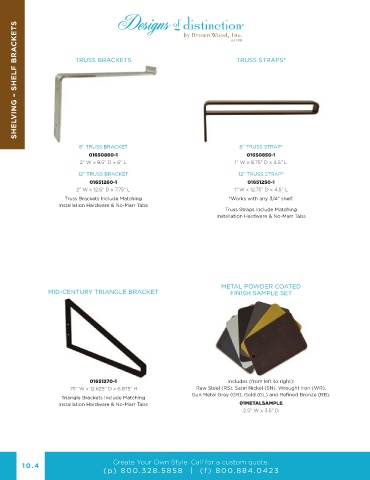

P. 98
SHELVING – SHELF BRACKETS
TRUSS BRACKETS TRUSS STRAPS*
8” TRUSS BRACKET 8” TRUSS STRAP*
01650860-1 01650850-1
2” W x 8.5” D x 6” L 1” W x 8.75” D x 4.5” L
12” TRUSS BRACKET 12” TRUSS STRAP*
01651260-1 01651250-1
2” W x 12.5” D x 7.75” L 1” W x 12.75” D x 4.5” L
Truss Brackets Include Matching *Works with any 3/4” shelf.
Installation Hardware & No-Marr Tabs
Truss Straps Include Matching
Installation Hardware & No-Marr Tabs
METAL POWDER COATED
MID-CENTURY TRIANGLE BRACKET FINISH SAMPLE SET
01651270-1 Includes (from left to right):
.75” W x 12.625” D x 6.875” H Raw Steel (RS), Satin Nickel (SN), Wrought Iron (WR),
Gun Metal Grey (GR), Gold (GL) and Refined Bronze (RB).
Triangle Brackets Include Matching
Installation Hardware & No-Marr Tabs 01METALSAMPLE
2.5” W x 3.5” D
www.brownwoodinc.com | info@brownwoodinc.com
Create Your Own Style. Call for a custom quote.
10.4
(p) 800.328.5858 | (f ) 800.884.0423
