• The section labeled J1 is the 62-pin type D interface connector.
2.3 Connect mode

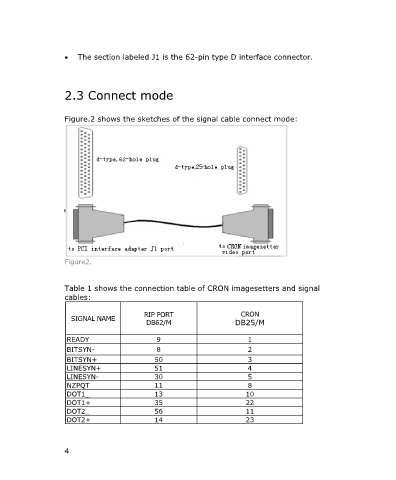

Figure.2 shows the sketches of the signal cable connect mode:
Figure2.
Table 1 shows the connection table of CRON imagesetters and signal
cables:
SIGNAL NAME RIP PORT CRON
DB62/M
DB25/M
READY 9 1
BITSYN- 8 2
BITSYN+ 50 3
LINESYN+ 51 4
LINESYN- 30 5
NZPQT 11 8
DOT1_ 13 10
DOT1+ 35 22
DOT2_ 56 11
DOT2+ 14 23
