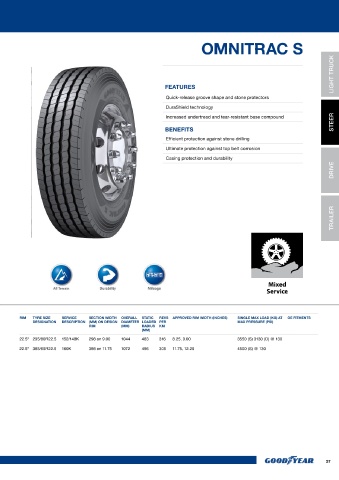

OMNITRAC MSA OMNITRAC S
LIGHT TRUCK
FEATURES FEATURES
LIGHT TRUCK
Straight line groove at zig-zag base Quick-release groove shape and stone protectors
Tapered depth shoulder notches DuraShield technology
Cut and chip-resistant tread compound Increased undertread and tear-resistant base compound STEER
BENEFITS BENEFITS
STEER
Excellent stone ejection Efficient protection against stone drilling
Improved wear evenness Ultimate protection against top belt corrosion
Improved final appearance and retreadabiliy Casing protection and durability
DRIVE
DRIVE
TRAILER
TRAILER
RIM TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS APPROVED RIM WIDTH (INCHES) SINGLE MAX LOAD (KG) AT OE FITMENTS RIM TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS APPROVED RIM WIDTH (INCHES) SINGLE MAX LOAD (KG) AT OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED PER MAX PRESSURE (PSI) DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED PER MAX PRESSURE (PSI)
RIM (MM) RADIUS KM RIM (MM) RADIUS KM
(MM) (MM)
22.5" 11R22.5 148/145L 280 on 8.25 1062 495 308 7.50, 8.25 3150 (S) 2900 (D) @ 124 22.5" 295/80R22.5 152/148K 298 on 9.00 1044 483 316 8.25, 9.00 3550 (S) 3130 (D) @ 130
22.5" 385/65R22.5 160K 398 on 11.75 1072 496 305 11.75, 12.25 4500 (S) @ 130
