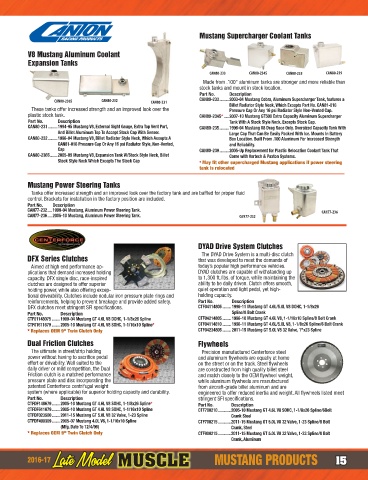

Page 16 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

Mustang Supercharger Coolant Tanks

V8 Mustang Aluminum Coolant
Expansion Tanks

CAN80-233 CAN80-234S CAN80-235 CAN80-239
Made from .100" aluminum tanks are stronger and more reliable than
stock tanks and mount in stock location.
Part No. Description
CAN80-236S CAN80-232 CAN80-231 CAN80-233 .........2003-04 Mustang Cobra, Aluminum Supercharger Tank, features a
Billet Radiator Style Neck, Which Excepts Part No. CAN81-016
These tanks offer increased strength and an improved look over the Pressure Cap Or Any 16 psi Radiator Style Non-Vented Cap.
plastic stock tank. CAN80-234S* .....2007-10 Mustang GT500 Extra Capacity Aluminum Supercharger
Part No. Description Tank With A Stock Style Neck. Excepts Stock Cap.
CAN80-231 .........1994-95 Mustang V8, External Sight Gauge, Extra Top Vent Port, CAN80-235 .........1996-04 Mustang V8 Drag Race Only. Oversized Capacity Tank With
And Billet Aluminum Top To Accept Stock Cap With Sensor. Large Cap That Can Be Easily Packed With Ice. Mounts In Battery
CAN80-232 .........1996-04 Mustang V8, Billet Radiator Style Neck, Which Accepts A Box Location. Built From .100 Aluminum For Increased Strength
CAN81-016 Pressure Cap Or Any 16 psi Radiator Style, Non-Vented, and Reliability.
Cap CAN80-239 .........2005-Up Replacement for Plastic Relocation Coolant Tank That
CAN80-236S .......2005-09 Mustang V8, Expansion Tank W/Stock Style Neck, Billet Come with Vortech & Paxton Systems.
Stock Style Neck Which Excepts The Stock Cap * May fit other supercharged Mustang applications if power steering
tank is relocated

Mustang Power Steering Tanks
Tanks offer increased strength and an improved look over the factory tank and are baffled for proper fluid
control. Brackets for installation in the factory position are included.
Part No. Description
CAN77-232 .... 1999-04 Mustang, Aluminum Power Steering Tank. CAN77-236
CAN77-236 .... 2005-10 Mustang, Aluminum Power Steering Tank. CAN77-232

DYAD Drive System Clutches
The DYAD Drive System is a multi-disc clutch
DFX Series Clutches that was developed to meet the demands of
Aimed at high end performance ap- today’s popular high performance vehicles.
plications that demand increased holding DYAD clutches are capable of withstanding up
capacity. DFX single disc, race-inspired to 1,300 ft./lbs. of torque, while maintaining the
clutches are designed to offer superior ability to be daily driven. Clutch offers smooth,
holding power, while also offering excep- quiet operation and light pedal, yet high-
tional driveability. Clutches include nodular iron pressure plate rings and holding capacity.
reinforcements, helping to prevent breakage and provide added safety. Part No. Description
DFX clutches meet stringent SFI specifications. CTF04114805 ........ 1996-11 Mustang GT 4.6L/5.0L V8 DOHC, 1-1/8x26
Part No. Description Spline/8 Bolt Crank
CTF01148075 ........1999-04 Mustang GT 4.6L V8 DOHC, 1-1/8x26 Spline CTF04214805 ........ 1996-10 Mustang GT 4.6L V8, 1-1/16x10 Spline/8 Bolt Crank
CTF01611679 ........2005-10 Mustang GT 4.6L V8 SOHC, 1-1/16x10 Spline* CTF04114810 ........ 1996-11 Mustang GT 4.6L/5.0L V8, 1-1/8x26 Spline/6 Bolt Crank
* Replaces OEM 9" Twin Clutch Only CTF04234805 ........ 2011-15 Mustang GT 5.0L V8 32 Valve, 1"x23 Spline
Dual Friction Clutches Flywheels
The ultimate in street/strip holding Precision manufactured Centerforce steel
power without having to sacrifice pedal and aluminum flywheels are equally at home
effort or drivability. Well suited to the on the street or on the track. Steel flywheels
daily driver or mild competition, the Dual are constructed from high quality billet steel
Friction clutch is a matched performance and match closely to the OEM flywheel weight,
pressure plate and disc incorporating the while aluminum flywheels are manufactured
patented Centerforce centrifugal weight from aircraft-grade billet aluminum and are
system (where applicable) for superior holding capacity and durability. engineered to offer reduced inertia and weight. All flywheels listed meet
Part No. Description stringent SFI specifications.
CTFDF148679 ........2005-10 Mustang GT 4.6L V8 SOHC, 1-1/8x26 Spline* Part No. Description
CTFDF611679 ........2005-10 Mustang GT 4.6L V8 SOHC, 1-1/16x10 Spline CTF700210 ............2005-10 Mustang GT 4.6L V8 SOHC, 1-1/8x26 Spline/6Bolt
CTFDF023500 ........2011-15 Mustang GT 5.0L V8 32 Valve, 1-23 Spline Crank Steel
CTFDF490309 ........2005-07 Mustang 4.0L V6, 1-1/16x10 Spline CTF700215 ............2011-15 Mustang GT 5.0L V8 32 Valve, 1-23 Spline/8 Bolt
(Mfg. Date To 12/4/06) Crank, Steel
* Replaces OEM 9" Twin Clutch Only CTF900215 ............2011-15 Mustang GT 5.0L V8 32 Valve, 1-23 Spline/8 Bolt
Crank, Aluminum

2016-17 MUSTANG PRODUCTS 15
