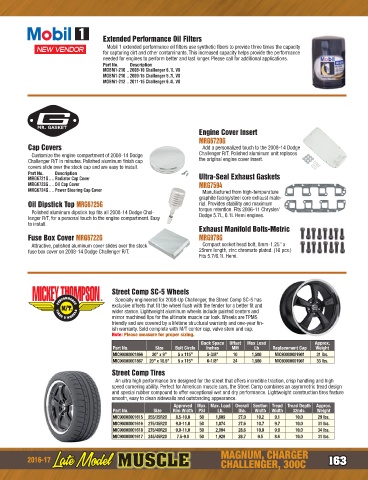

Page 164 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

Extended Performance Oil Filters
Mobil 1 extended performance oil filters use synthetic fibers to provide three times the capacity
for capturing dirt and other contaminants. This increased capacity helps provide the performance
needed for engines to perform better and last longer. Please call for additional applications.
Part No. Description
MOBM1-210 ..2008-10 Challenger 6.1L V8
MOBM1-210 ..2009-15 Challenger 5.7L V8
MOBM1-212 ..2011-15 Challenger 6.4L V8

Engine Cover Insert
MRG6720G
Cap Covers Add a personalized touch to the 2008-14 Dodge
Customize the engine compartment of 2008-14 Dodge Challenger R/T. Polished aluminum unit replaces
Challenger R/T in minutes. Polished aluminum finish cap the original engine cover insert.
covers slide over the stock cap and are easy to install.
Part No. Description
MRG6721G ....Radiator Cap Cover Ultra-Seal Exhaust Gaskets
MRG6723G ....Oil Cap Cover MRG7594
MRG6724G ....Power Steering Cap Cover Manufactured from high-temperature
graphite facing/steel core exhaust mate-
Oil Dipstick Top MRG6725G rial. Provides stability and maximum
torque retention. Fits 2006-11 Chrysler/
Polished aluminum dipstick top fits all 2008-14 Dodge Chal- Dodge 5.7L, 6.1L Hemi engines.
lenger R/T, for a personal touch to the engine compartment. Easy
to install.
Exhaust Manifold Bolts-Metric
Fuse Box Cover MRG6722G MRG978G
Attractive, polished aluminum cover slides over the stock Compact socket head bolt, 8mm-1.25" x
fuse box cover on 2008-14 Dodge Challenger R/T. 25mm length, zinc chromate plated. (16 pcs.)
Fits 5.7/6.1L Hemi.

Street Comp SC-5 Wheels
Specially engineered for 2008-Up Challenger, the Street Comp SC-5 has
exclusive offsets that fit the wheel flush with the fender for a better fit and
wider stance. Lightweight aluminum wheels include painted centers and
mirror machined lips for the ultimate muscle car look. Wheels are TPMS
friendly and are covered by a lifetime structural warranty and one-year fin-
ish warranty. Sold complete with M/T center cap, valve stem and cap.
Note: Please measure for proper sizing.
Back Space Offset Max Load Approx.
Part No. Size Bolt Circle Inches MM Lb Replacement Cap Weight
MIC90000001866 20” x 9” 5 x 115” 5-3/8” 10 1,580 MIC90000001901 31 lbs.
MIC90000001867 20” x 10.5” 5 x 115” 6-1/8” 24 1,580 MIC90000001901 33 lbs.
Street Comp Tires
An ultra high performance tire designed for the street that offers incredible traction, crisp handling and high
speed cornering ability. Perfect for American muscle cars, the Street Comp combines an asymmetric tread design
and special rubber compound to offer exceptional wet and dry performance. Lightweight construction tires feature
smooth, easy to clean sidewalls and outstanding appearance.
Approved Max. Max. Load Overall Section Tread Tread Depth Approx.
Part No. Size Rim Width PSI Lb. Dia. Width Width 32nds. Weight
MIC90000001615 255/35R20 8.5-10.0 50 1,609 27.0 10.2 9.1 10.0 29 lbs.
MIC90000001616 275/35R20 9.0-11.0 50 1,874 27.6 10.7 9.7 10.0 31 lbs.
MIC90000001618 275/40R20 9.0-11.0 50 2,094 28.6 10.9 9.9 10.0 34 lbs.
MIC90000001617 245/45R20 7.5-9.0 50 1,929 28.7 9.5 8.6 10.0 31 lbs.

MAGNUM, CHARGER
2016-17 163
CHALLENGER, 300C
