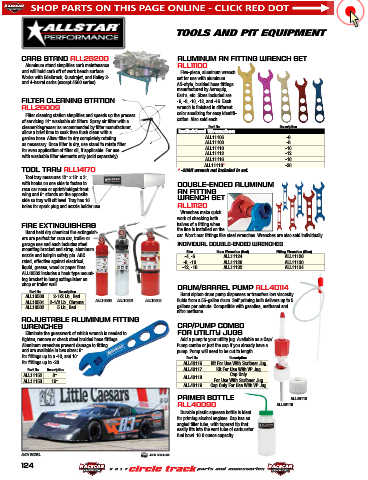

Page 125 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

TOOLS AND PIT EQUIPMENT

CARB STAND ALL26200 ALUMINUM AN FITTING WRENCH SET
Aluminum stand simplifies carb maintenance ALL11100
and will hold carb off of work bench surface. Five-piece, aluminum wrench
Works with Edelbrock, Quadrajet, and Holley 2- set for use with aluminum
and 4-barrel carbs (except 4500 series). AN-style, braided hose fittings
manufactured by Aeroquip,
Earl’s, etc. Sizes included are
FILTER CLEANING STATION -6, -8, -10, -12, and -16. Each
ALL26009 wrench is finished in different
Filter cleaning station simplifies and speeds up the process color anodizing for easy identifi-
of servicing 14" washable air filters. Spray air filter with a cation. Also sold each.
cleaner/degreaser as recommended by filter manufacturer, Part No. Description
allow a brief time to soak then flush clean with a Individual Wrenches
garden hose. Allow filter to dry completely rotating ALL11106 -6
as necessary. Once filter is dry, use stand to rotate filter ALL11108 -8
for even application of filter oil, if applicable. For use ALL11110 -10
with washable filter elements only (sold separately). ALL11112 -12
ALL11116 -16
ALL11118* -20
TOOL TRAY ALL14170 * -20AN wrench not included in set.
Tool tray measures 12" x 18" x 3",
with hooks on one side to fasten to DOUBLE-ENDED ALUMINUM
race car nose or sprint/midget front AN FITTING
wing and 6" stands on the opposite
side so tray will sit level. Tray has 16 WRENCH SET
holes for spark plug and nozzle holder use. ALL11120
Wrenches make quick
work of checking both
FIRE EXTINGUISHERS halves of a fitting when
Hand held dry chemical fire extinguish- the line is installed on the
ers are perfect for race car, trailer or car. Won’t mar fittings like steel wrenches. Wrenches are also sold individually.
garage use and each includes steel INDIVIDUAL DOUBLE-ENDED WRENCHES
mounting bracket and strap, aluminum Size Hose Wrenches (Red) Fitting Wrenches (Blue)
nozzle and hairpin safety pin. ABC -4, -6 ALL11124 ALL11126
rated, effective against electrical, -8, -10 ALL11128 ALL11130
liquid, grease, wood or paper fires. -12, -16 ALL11132 ALL11134
ALL10502 includes a hook type mount-
ing bracket to hang extinguisher on
shop or trailer wall. DRUM/BARREL PUMP ALL40114
Part No. Description
ALL10500 2-1/2 Lb., Red Hand siphon drum pump dispenses or transfers low viscosity
ALL10501 2-1/2 Lb., Chrome ALL10500 ALL10501 ALL10502 fluids from a 55-gallon drum. Self priming bulb delivers up to 5
ALL10502 5 Lb., Red gallons per minute. Compatible with gasoline, methanol and
nitro methane.
ADJUSTABLE ALUMINUM FITTING
WRENCHES CAP/PUMP COMBO
Eliminate the guesswork of which wrench is needed to FOR UTILITY JUGS
tighten, remove or check steel braided hose fittings. Add a pump to your utility jug. Available as a Cap/
Aluminum wrenches prevent damage to fitting Pump combo or just the cap if you already have a
and are available in two sizes: 8" pump. Pump will need to be cut to length.
for fittings up to a -10, and 10" Part No. Description
for fittings up to -20. ALL40116 Kit For Use With Scribner Jug
Part No. Description ALL40117 Kit For Use With VP Jug
ALL11152 8" ALL40118 Cap Only
ALL11153 10" For Use With Scribner Jug
ALL40119 Cap Only For Use With VP Jug
PRIMER BOTTLE ALL40118
ALL40090 ALL40116
Durable plastic squeeze bottle is ideal
for priming alcohol engines. Cap has an
angled filler tube, with tapered tip that
easily fits into the vent tube of carburetor
fuel bowl. 16.9 ounce capacity.

ANDY BOZELL JOHN BERGLUND
