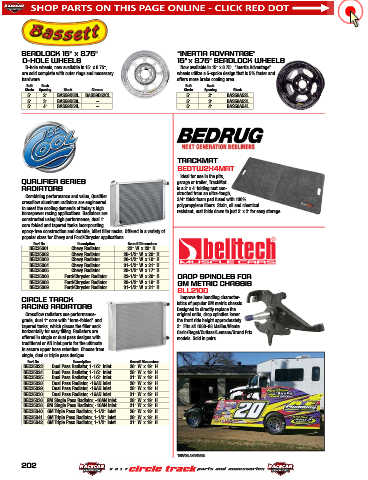

Page 203 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BEADLOCK 15" X 8.75" “INERTIA ADVANTAGE”
D-HOLE WHEELS 15" X 8.75" BEADLOCK WHEELS
D-hole wheels, now available in 15" x 8.75", Now available in 15" x 8.75", “Inertia Advantage”
are sold complete with outer rings and necessary wheels utilize a 5-spoke design that is 5% faster and
hardware. offers more brake cooling area.
Bolt Back Bolt Back
Circle Spacing Black Chrome Circle Spacing Black
5" 2" BAS59D52L BAS59D52CL 5" 2" BAS59A52L
5" 3" BAS59D53L – 5" 3" BAS59A53L
5" 4" BAS59D54L – 5" 4" BAS59A54L

TRACKMAT
BEDTW2X4MAT
Ideal for use in the pits,
QUALIFIER SERIES garage or trailer, TrackMat
RADIATORS is a 2' x 4' folding mat con-
Combining performance and value, Qualifier structed from an ultra-tough,
crossflow aluminum radiators are engineered 3/4" thick foam pad fused with 100%
to meet the cooling demands of today's high polypropylene fibers. Stain, oil and chemical
horsepower racing applications. Radiators are resistant, mat folds down to just 2' x 2' for easy storage.
constructed using high performance, dual 1"
core folded and tapered tanks incorporating
epoxy-free construction and durable, billet filler necks. Offered in a variety of
popular sizes for Chevy and Ford/Chrysler applications.
Part No. Description Overall Dimensions
BEC35001 Chevy Radiator 22" W. x 20" H.
BEC35002 Chevy Radiator 26-1/2" W. x 20" H.
BEC35003 Chevy Radiator 28-1/2" W. x 19" H.
BEC35004 Chevy Radiator 31-1/2" W. x 21" H.
BEC35005 Chevy Radiator 28-1/2" W. x 17" H.
BEC35006 Ford/Chrysler Radiator 22-1/2" W. x 20" H. DROP SPINDLES FOR
BEC35008 Ford/Chrysler Radiator 28-1/2" W. x 19" H. GM METRIC CHASSIS
BEC35009 Ford/Chrysler Radiator 31-1/2" W. x 21" H. BLL2100
CIRCLE TRACK Improve the handling character-
RACING RADIATORS istics of popular GM metric chassis.
Designed to directly replace the
Crossflow radiators use performance- original units, drop spindles lower
grade, dual 1" core with “form-folded” and the front ride height approximately
tapered tanks, which places the filler neck 2". Fits all 1980-88 Malibu/Monte
horizontally for easy filling. Radiators are Carlo/Regal/Cutlass/Lemans/Grand Prix
offered in single or dual pass designs with models. Sold in pairs.
traditional or AN inlet ports for the ultimate
in secure upper hose retention. Choose from
single, dual or triple pass designs.
Part No. Description Overall Dimensions
BEC35023 Dual Pass Radiator, 1-1/2" Inlet 26" W. x 19" H.
BEC35024 Dual Pass Radiator, 1-1/2" Inlet 28" W. x 19" H.
BEC35025 Dual Pass Radiator, 1-1/2" Inlet 31" W. x 19" H.
BEC35028 Dual Pass Radiator, -16AN Inlet 26" W. x 19" H.
BEC35029 Dual Pass Radiator, -16AN Inlet 28" W. x 19" H.
BEC35030 Dual Pass Radiator, -16AN Inlet 31" W. x 19" H.
BEC35036 GM Single Pass Radiator, -16AN Inlet 28" W. x 19" H.
BEC35038 GM Single Pass Radiator, -16AN Inlet 31" W. x 19" H.
BEC35040 GM Triple Pass Radiator, 1-1/2" Inlet 26" W. x 19" H.
BEC35041 GM Triple Pass Radiator, 1-1/2" Inlet 28" W. x 19" H.
BEC35042 GM Triple Pass Radiator, 1-1/2" Inlet 31" W. x 19" H.

TREVOR ANDERSON
202
