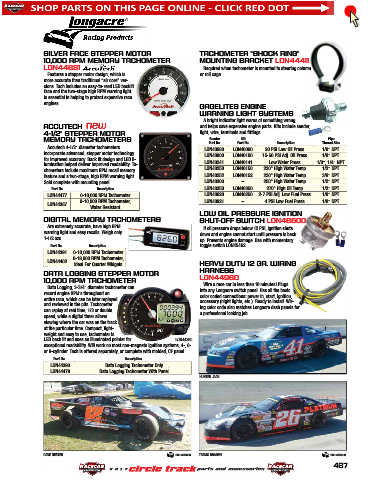

Page 438 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

SILVER FACE STEPPER MOTOR TACHOMETER “SHOCK RING”
10,000 RPM MEMORY TACHOMETER MOUNTING BRACKET LON44411
LON44381 Required when tachometer is mounted to steering column
Features a stepper motor design, which is or roll cage.
more accurate than traditional “air core” ver-
sions. Tach includes an easy-to-read LED backlit
face and the two-stage high RPM warning light
is essential in helping to protect expensive race
engines. GAGELITES ENGINE
WARNING LIGHT SYSTEMS
A bright indicator light warns of something wrong,
ACCUTECH and helps save expensive engine parts. Kits include sender,
4-1/2" STEPPER MOTOR light, wire, terminals and fittings.
MEMORY TACHOMETERS Part No. Part No. Description Thread Size
Pipe
Sender
Kit
Accutech 4-1/2" diameter tachometers LON43080 LON40000 20 PSI Low Oil Press. 1/8" NPT
incorporate advanced, stepper motor technology LON43000 LON40100 15-50 PSI Adj. Oil Press. 1/8" NPT
for improved accuracy. Back lit design and LED il-
lumination helped deliver improved readability. Ta- LON43241 LON40141 Low Water Press. 1/8", 1/4" NPT
chometers include maximum RPM recall memory LON43250 LON40150 230° High Water Temp. 1/2" NPT
feature and a two-stage, high RPM warning light. LON43252 LON40152 230° High Water Temp. 3/8" NPT
Sold complete with mounting panel. LON43300 – 250° High Water Temp. 1/2" NPT
Part No. Description LON43350 LON40350 270° High Oil Temp. 1/2" NPT
LON44477 0-10,000 RPM Tachometer LON43020 LON40250 2-7 PSI Adj. Low Fuel Press. 1/8" NPT
0-10,000 RPM Tachometer, LON43021 – 4 PSI Low Fuel Press. 1/8" NPT
LON44387 Water Resistant
LOW OIL PRESSURE IGNITION
DIGITAL MEMORY TACHOMETERS SHUT-OFF SWITCH LON43600
Are extremely accurate, have high RPM If oil pressure drops below 12 PSI, ignition shuts
warning light and easy recalls. Weigh only down and engine cannot start until pressure is back
1-1/2 ozs. up. Prevents engine damage. Use with momentary
Part No. Description toggle switch LON45462.
LON44391 0-10,000 RPM Tachometer
0-19,000 RPM Tachometer,
LON44402 Ideal For Quarter Midgets HEAVY DUTY 12 GA. WIRING
HARNESS
DATA LOGGING STEPPER MOTOR
10,000 RPM TACHOMETER LON44930
Data Logging, 3-3/4" diameter tachometer can Wire a race car in less than 10 minutes! Plugs
record engine RPM’s throughout an into any Longacre switch panel. Has all the basic
color coded connections: power in, start, ignition,
entire race, which can be later replayed accessory (night lights, etc.). Ready to install. Wir-
and reviewed in the pits. Tachometer ing color code also matches Longacre dash panels for
can replay at real time, 1/3 or double a professional looking job.
speed, while a digital timer allows
viewing where the car was on the track
at the particular time. Compact, light-
weight and easy to use, tachometer is
LED back lit and uses an illuminated pointer for LON44390
exceptional readability. Will work on most non-magneto ignition systems, 4-, 6-
or 8-cylinder. Tach is offered separately, or complete with molded, CF panel.
Part No. Description
LON44390 Data Logging Tachometer Only
LON44479 Data Logging Tachometer With Panel
