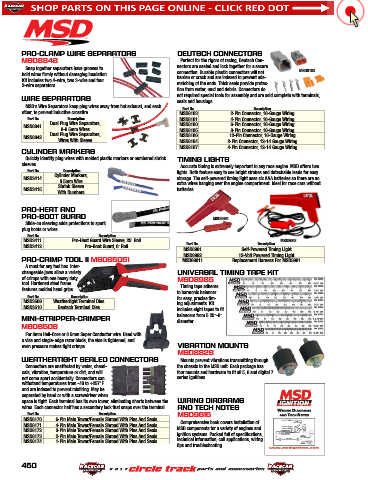

Page 451 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

PRO-CLAMP WIRE SEPARATORS DEUTSCH CONNECTORS
MSD8843 Perfect for the rigors of racing, Deutsch Con-
Snap together separators have grooves to nectors are sealed and lock together for a secure MSD8183
hold wires firmly without damaging insulation. connection. Durable plastic connectors will not
Kit includes two 4-wire, two 3-wire and four harden or crack and are indexed to prevent mis-
2-wire separators. matching of the ends. Thick seals provide protec-
tion from water, mud and debris. Connectors do
WIRE SEPARATORS not required special tools for assembly and are sold complete with terminals,
seals and housings.
MSD’s Wire Separators keep plug wires away from hot exhaust, and each Part No. Description
other, to prevent inductive crossfire. MSD8183 2-Pin Connector, 16-Gauge Wiring
Part No. Description MSD8181 4-Pin Connector, 16-Gauge Wiring
Dual Plug Wire Separators, MSD8180 6-Pin Connector, 16-Gauge Wiring
MSD8841
8-8.5mm Wires MSD8185 8-Pin Connector, 16-Gauge Wiring
Dual Plug Wire Separators,
MSD8842 MSD8186 12-Pin Connector, 16-Gauge Wiring
Wires With Sleeve MSD8184 2-Pin Connector, 12-14 Gauge Wiring
MSD8187 4-Pin Connector, 12-14 Gauge Wiring
CYLINDER MARKERS
Quickly identify plug wires with molded plastic markers or numbered shrink TIMING LIGHTS
sleeves. Accurate timing is extremely important to any race engine. MSD offers two
Part No. Description lights. Both feature easy to see bright strobes and detachable leads for easy
Cylinder Markers,
MSD3414 storage. The self-powered timing light uses six AAA batteries so there are no
8.5mm Wire
Shrink Sleeve extra wires hanging over the engine compartment. Ideal for race cars without
MSD3415 batteries.
With Numbers
PRO-HEAT AND
PRO-BOOT GUARD MSD8991
Slide-on sleeving adds protections to spark
plug boots or wires.
Part No. Description
MSD3411 Pro-Heat Guard Wire Sleeve, 25' Roll MSD8992
Part No.
Description
MSD3412 Pro-Boot Guard, 6' Roll MSD8991 Self-Powered Timing Light
MSD8992 12-Volt Powered Timing Light
PRO-CRIMP TOOL II MSD35051 MSD89911 Replacement Harness For MSD8991
A must for any tool box. Inter-
changeable jaws allow a variety UNIVERSAL TIMING TAPE KIT
of crimps with one heavy duty MSD8985
tool. Hardened steel frame
Timing tape adheres
features molded hand grips. to harmonic balancer
Part No. Description for easy, precise tim-
MSD3509 Weathertight Terminal Dies ing adjustments. Kit
MSD3510 Deutsch Terminal Dies
includes eight tapes to fit
MINI-STRIPPER-CRIMPER balancers from 5.25"-8"
diameter.
MSD3503
For 8mm Heli-Core or 8.5mm Super Conductor wire. Used with
a vise and single-edge razor blade, the vise is tightened, and
even pressure makes tight crimps. VIBRATION MOUNTS
MSD8823
WEATHERTIGHT SEALED CONNECTORS Mounts prevent vibrations transmitting through
Connectors are unaffected by water, chemi- the chassis to the MSD unit. Each package has
cals, vibration, temperature or dirt, and will four mounts and hardware to fit all 5, 6 and digital 7
not come apart accidentally. Connectors can series ignitions.
withstand temperatures from -40 to +257°F.
and are indexed to prevent misfiring. May be
separated by hand or with a screwdriver when
space is tight. Each terminal has its own tower, eliminating shorts between the WIRING DIAGRAMS
wires. Each connector half has a secondary lock that snaps over the terminal. AND TECH NOTES
Part No. Description MSD9615
MSD8170 6-Pin Male Tower/Female Shroud With Pins And Seals Comprehensive book covers installation of
MSD8171 4-Pin Male Tower/Female Shroud With Pins And Seals
MSD8172 3-Pin Male Tower/Female Shroud With Pins And Seals MSD components for a variety of engines and
MSD8173 2-Pin Male Tower/Female Shroud With Pins And Seals ignition systems. Packed full of specifications,
MSD8174 1-Pin Male Tower/Female Shroud With Pins And Seals technical information, coil applications, wiring
tips and troubleshooting.
