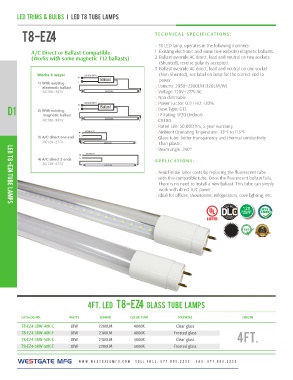

Page 146 - Westgate Catalog #34 Ver.2

LED TRIMS & BULBS I LED T8 TUBE LAMPS TECHNICAL SPECIFICATIONS:
:: T8 LED lamp, operates in the following manners:
T8-EZ4 1 Existing electronic and some (see website) magnetic ballasts.
2 Ballast override AC direct, load and neutral on two sockets
A/C Direct or Ballast Compatible
(Works with some magnetic T12 ballasts) (Shunted), reverse polarity accepted.
3 Ballast override AC direct, load and neutral on one socket
D1
(Non-Shunted), see label on lamp for the correct end to
LED T8-EZ4 TUBE lamps power.
:: Lumens: 2050~2200LM (120LM/W)
:: Voltage: 120V~277V AC
:: Non dimmable
:: Power Factor: 0.9 THD: <20%
:: Base Type: G13
:: IP Rating: IP20 (Indoor)
:: CRI 80
:: Rated Life: 50,000 hrs, 5-year warranty
:: Ambient Operating Tmperature: -13ºF to 113ºF
:: Glass tube: better transparency and thermal conductivity
than plastic
:: Beam angle: 240º
APPLICATIONS:
:: Avoid initial labor costs by replacing the fluorescent tube
:: with this compatible tube. Once the fluorescent ballast fails,
there is no need to install a new ballast. This tube can simply
work with direct A/C power.
:: Ideal for offices, showrooms, refrigerators, cove lighting, etc.

120 LLMM7890&

LUWMAETNTS/

LHUMIGEHN

4ft. led t8-ez4 GLASS Tube lamps

CATALOG NO. WATTS LUMENS COLOR TEMP MATERIAL LENGTH

T8-EZ4-18W-40K-C 18W 2200LM 4000K Clear glass 4ft.
T8-EZ4-18W-40K-F 18W 2100LM 4000K Frosted glass
T8-EZ4-18W-50K-C 18W 2300LM 5000K Clear glass
T8-EZ4-18W-50K-F 18W 2200LM 5000K Frosted glass

WESTGATE MFG W W W . W E S T G A T E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 F A X : 8 7 7 . 8 0 9 . 2 2 5 2
