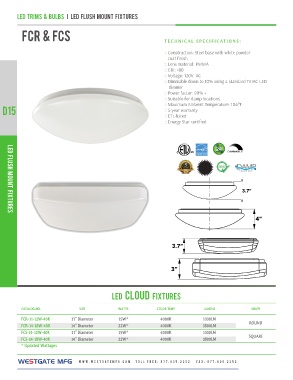

Page 160 - Westgate Catalog #34 Ver.2

LED TRIMS & BULBS I LED FLUSH MOUNT FIXTURES TECHNICAL SPECIFICATIONS:
:: Construction: Steel base with white powder
FCR & FCS
coat finish
D15 :: Lens material: PMMA
:: CRI: >80
:: Voltage: 120V AC
:: Dimmable down to 10% using a standard TRIAC LED

dimmer
:: Power factor: 90% +
:: Suitable for damp locations
:: Maximum Ambient Temperature: 104°F
:: 5-year warranty
:: ETL-listed
:: Energy Star certified

LED FLUSH MOUNT FIXTURES LUHMIGEHN

LED CLOUD FIXTURES

CATALOG NO. SIZE WATTS COLOR TEMP LUMENS SHAPE

FCR-11-12W-40K 11” Diameter 15W* 4000K 1100LM ROUND
FCR-14-18W-40K 14” Diameter 22W* 4000K 1800LM SQUARE
FCS-11-12W-40K 11” Diameter 15W* 4000K 1100LM
FCS-14-18W-40K 14” Diameter 22W* 4000K 1800LM
* Updated Wattages
