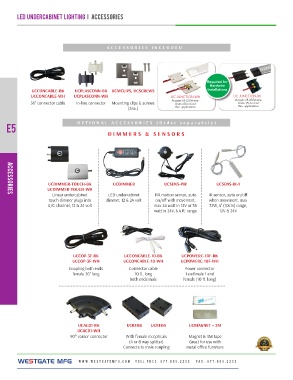

Page 190 - Westgate Catalog #34 Ver.2

LED UNDERCABINET LIGHTING I ACCESSORIES

ACCESSORIES INCLUDED

UCCONCABLE-BK UCPLASCONN-BK UCMCLIPS, UCSCREWS Required for
UCCONCABLE-WH UCPLASCONN-WH Hardwire
36” connector cable
In-line connector Mounting clips & screws Installations
(2ea.)
UC JUNCTION-WH UC JUNCTION-BK

Accepts 18-22GA wire. Accepts 18-22GA wire.
Order (2) for feed Order (2) for feed
thru applications thru applications

E5 OPTIONAL ACCESSORIES (Order separately)

DIMMERS & SENSORS

...................................................
...................................................
...................................................

ACCESSORIES
UCDIMMER-TOUCH-BK UCDIMMER UCSENS-PIR UCSENS-IR-1
UCDIMMER-TOUCH-WH LED undercabinet PIR motion sensor, auto IR sensor, auto on/off
dimmer, 12 & 24 volt on/off with movement, when movement, max
Linear undercabinet max 24 watt in 12V or 36 72W, 4” (10cm) range,
touch dimmer plugs into watt in 24V, 6.4 ft. range
U/C channel, 12 & 24 volt 12V & 24V

UCCOP-3F-BK UCCONCABLE-10-BK UCPOWERC-10F-BK
UCCOP-3F-WH UCCONCABLE-10-WH UCPOWERC-10F-WH

Coupling both ends Connector cable Power connector
female 36” long 10 ft. long 1 end male 1 end
...............................................b..o.t.h...e.n.d..s..m..a.l.e...................f.e.m..a.l.e..(.1.0..f.t....lo..n.g.).......

UCAC01-BK UCRE08 UCRE04 UCMAGNET + 3M
UCAC01-WH With female recepticals Magnet & 3M tape
90° corner connector Great for use with
(4 or 8-way splitter) metal office furniture
Connects to male coupling

WESTGATE MFG W W W . W E S T G A T E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 F A X : 8 7 7 . 8 0 9 . 2 2 5 2
