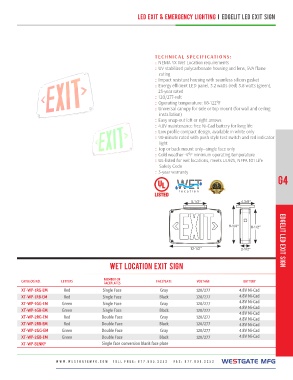

Page 213 - Westgate Catalog #34 Ver.2

LED EXIT & EMERGENCY LIGHTING I EDGELIT LED EXIT SIGN

TECHNICAL SPECIFICATIONS:
:: NEMA 4X Wet Location requirements
:: UV stabilized polycarbonate housing and lens, 5VA flame

rating
:: Impact resistant housing with seamless silicon gasket
:: Energy efficient LED panel, 3.2 watts (red) 3.8 watts (green),

25-year rated
:: 120/277-volt
:: Operating temperature: 68-122°F
:: Universal canopy for side or top mount (for wall and ceiling

installation)
:: Easy snap-out left or right arrows
:: 4.8V maintenance free Ni-Cad battery for long life
:: Low profile compact design, available in white only
:: 90-minute rated with push style test switch and red indicator

light
:: Top or back mount only—single face only
:: Cold weather -4°F minimum operating temperature
:: UL-listed for wet locations, meets UL924, NFPA 101 Life

Safety Code
:: 3-year warranty

G4

location

WET LOCATION EXIT SIGN EDGELIT LED EXIT SIGN

CATALOG NO. LETTERS NUMBER OF FACEPLATE VOLTAGE BATTERY
FACEPLATES
XT-WP-1RG-EM Red 120/277 4.8V Ni-Cad
XT-WP-1RB-EM Red Single Face Gray 120/277 4.8V Ni-Cad
XT-WP-1GG-EM Green 120/277 4.8V Ni-Cad
XT-WP-1GB-EM Green Single Face Black 120/277 4.8V Ni-Cad
XT-WP-2RG-EM Red 120/277 4.8V Ni-Cad
XT-WP-2RB-EM Red Single Face Gray 120/277 4.8V Ni-Cad
XT-WP-2GG-EM Green 120/277 4.8V Ni-Cad
XT-WP-2GB-EM Green Single Face Black 120/277 4.8V Ni-Cad
XT-WP-BLNKP 4.8V Ni-Cad
Double Face Gray

Double Face Black

Double Face Gray

Double Face Black

Single face conversion blank face plate
