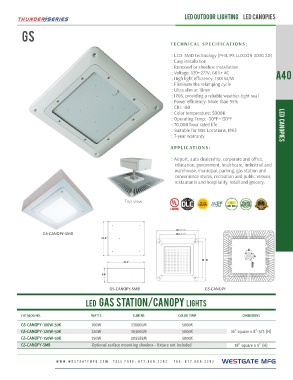

Page 47 - Westgate Catalog #34 Ver.2

LED OUTDOOR LIGHTING LED CANOPIES

GS TECHNICAL SPECIFICATIONS:

GS-CANOPY-SMB :: LED: SMD technology (PHILIPS LUXEON 3030 2D)
:: Easy installation
:: Recessed or shoebox installation
:: Voltage: 120~277V; 60Hz AC
:: High light efficiency: 130LM/W A40

:: Eliminate the relamping cycle
:: Ultra slim at 18mm
:: IP66, providing a reliable weather-tight seal
:: Power efficiency: More than 95%
:: CRI: >80
:: Color temperature: 5000K LED CANOPIES
:: Operating Temp: -30ºF~130ºF
:: 70,000 hour rated life
:: Suitable for Wet Locations, IP65
:: 7-year warranty

APPLICATIONS:

:: Airport, auto dealership, corporate and office,
education, government, healthcare, industrial and
warehouse, municipal, parking, gas station and
convenience stores, recreation and public venues,
restaurants and hospitality, retail and grocery.

Top view LHUMIGEHN

location

GS-CANOPY-SMB GS-CANOPY

LED gas station/canopy LIGHTS

CATALOG NO. WATTS LUMENS COLOR TEMP DIMENSIONS

GS-CANOPY-100W-50K 100W 13600LM 5000K 16” square x 8”-3/5 (H)
GS-CANOPY-120W-50K 18” square x 5” (H)
GS-CANOPY-150W-50K 120W 16300LM 5000K
GS-CANOPY-SMB
150W 20558LM 5000K

Optional surface mounting shoebox - fixture not included

W W W . W E S T G AT E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 FA X : 8 7 7 . 8 0 9 . 2 2 5 2 WESTGATE MFG
