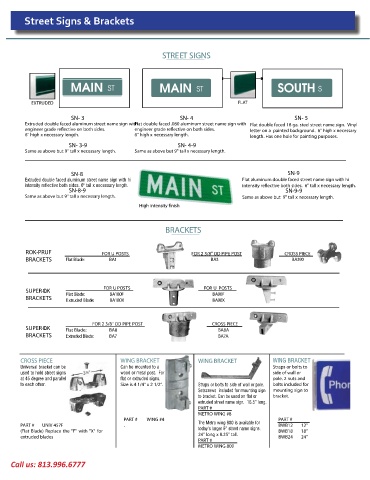

Page 127 - SignsByASAP_2023

EXAMPLE MATERIALS:
Street Signs & Brackets
R-70 BE - POWDER COATED PAINT ON 18GA STEEL BE-POWDER COATED PAINT ON 18GA STEEL STREET SIGNS & BRACKETS
R-70 RA - REFLECTIVE SHEETING ON .080 ALUMINUM RA-REFLECTIVE SHEETING ON .080 ALUMINUM

STREET SIGNS

EXTRUDED FLAT

SN- 3 SN- 4 SN- 5
Extruded double faced aluminum street name sign with Flat double faced .080 aluminum street name sign with Flat double faced 18 ga. steel street name sign. Vinyl
engineer grade reflective on both sides. engineer grade reflective on both sides. letter on a painted background. 6" high x necessary
6" high x necessary length. 6" high x necessary length. length. Has one hole for painting purposes.
SN- 3-9 SN- 4-9
Same as above but 9" tall x necessary length. Same as above but 9" tall x necessary length.

SN-8 SN-9
Extruded double faced aluminum street name sign with hi Flat aluminum double faced street name sign with hi
intensity reflective both sides. 6" tall x necessary length. intensity reflective both sides. 6" tall x necessary length.
SN-8-9 SN-9-9
Same as above but 9" tall x necessary length. Same as above but 9" tall x necessary length.
High intensity finish

BRACKETS

ROK-PRUF FOR U POSTS FOR 2 3/8" OD PIPE POST CROSS PIECE
BRACKETS Flat Blade: BA1 BA3 BA390

SUPER-LOK Flat Blade: FOR U POSTS FOR U POSTS
BA180F
BA90F
BRACKETS Extruded Blade: BA180X BA90X

FOR 2 3/8" OD PIPE POST CROSS PIECE
SUPER-LOK Flat Blade: BA8 BA8A
BRACKETS Extruded Blade: BA7 BA7A

CROSS PIECE WING BRACKET WING BRACKET WING BRACKET
Universal bracket can be Can be mounted to a Straps or bolts to
used to hold street signs wood or metal post. For side of wall or
at 45 degree and parallel flat or extruded signs. pole. 2 nuts and
to each other. Size is 4 1/4” x 2 1/2”. Straps or bolts to side of wall or pole. bolts included for
Setscrews included for mounting sign mounting sign to
to bracket. Can be used on flat or bracket.
extruded street name sign. 16.5” long.
PART #
METRO WING #8
PART # WING #4 PART #
PART # UNIV 457F . The Metro wing 800 is available for BWB12 12”
(Flat Blade) Replace the "F" with "X" for today’s larger 9” street name signs. BWB18 18”
extruded blades 24” long x 8.25” tall. BWB24 24”
PART #
METRO WING 800
Call us: 813.996.6777
